ASR 3 (Generation 2)
$1,099.00

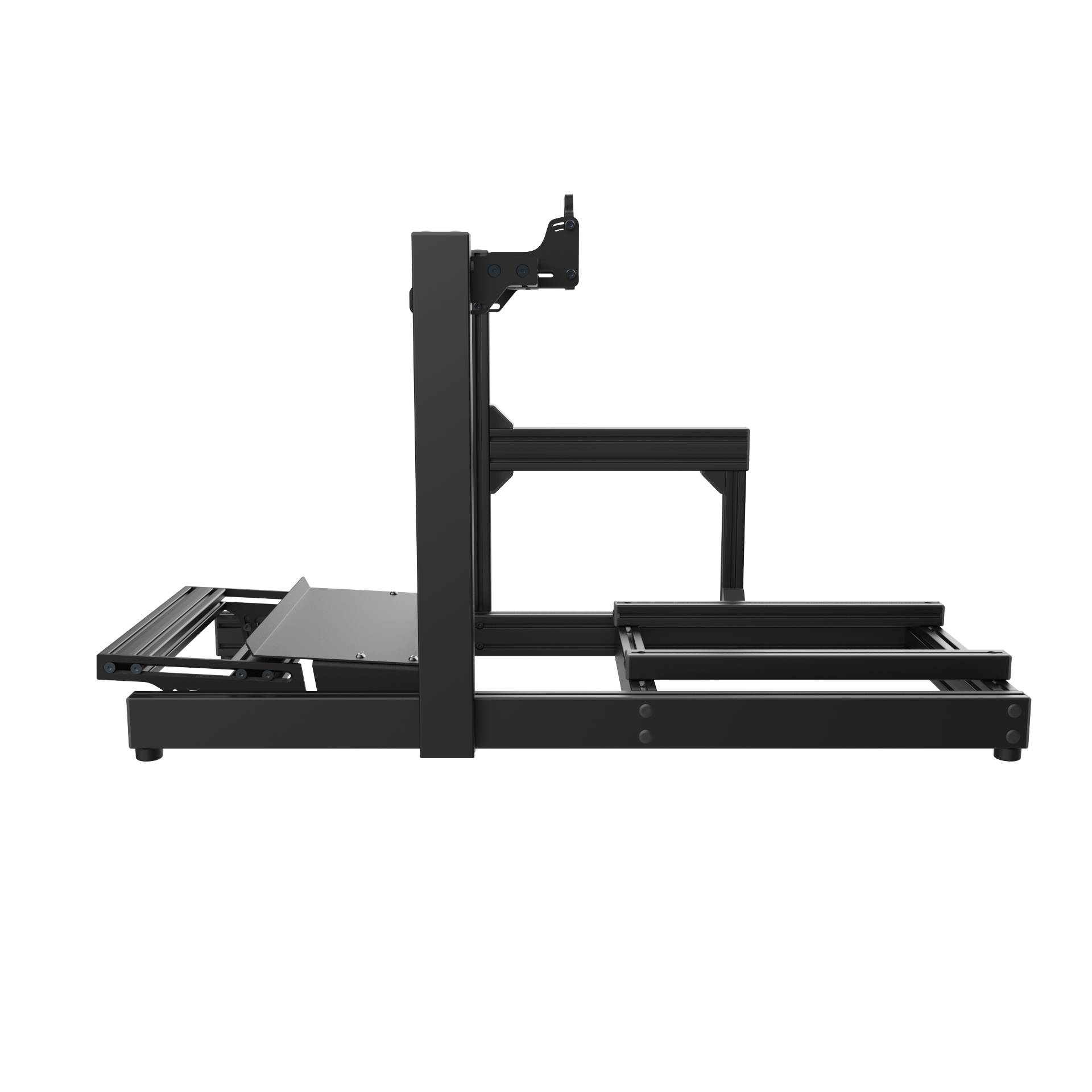

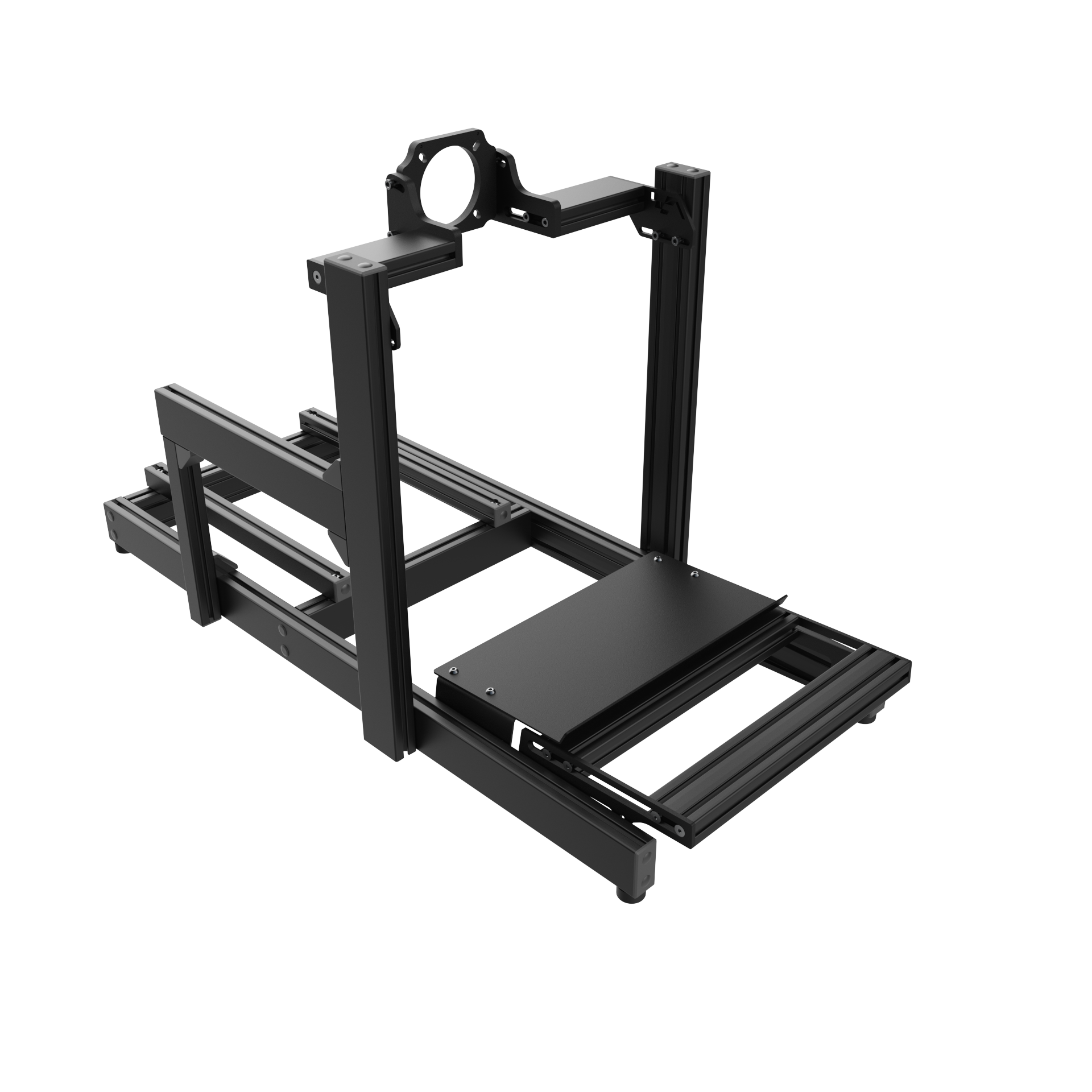

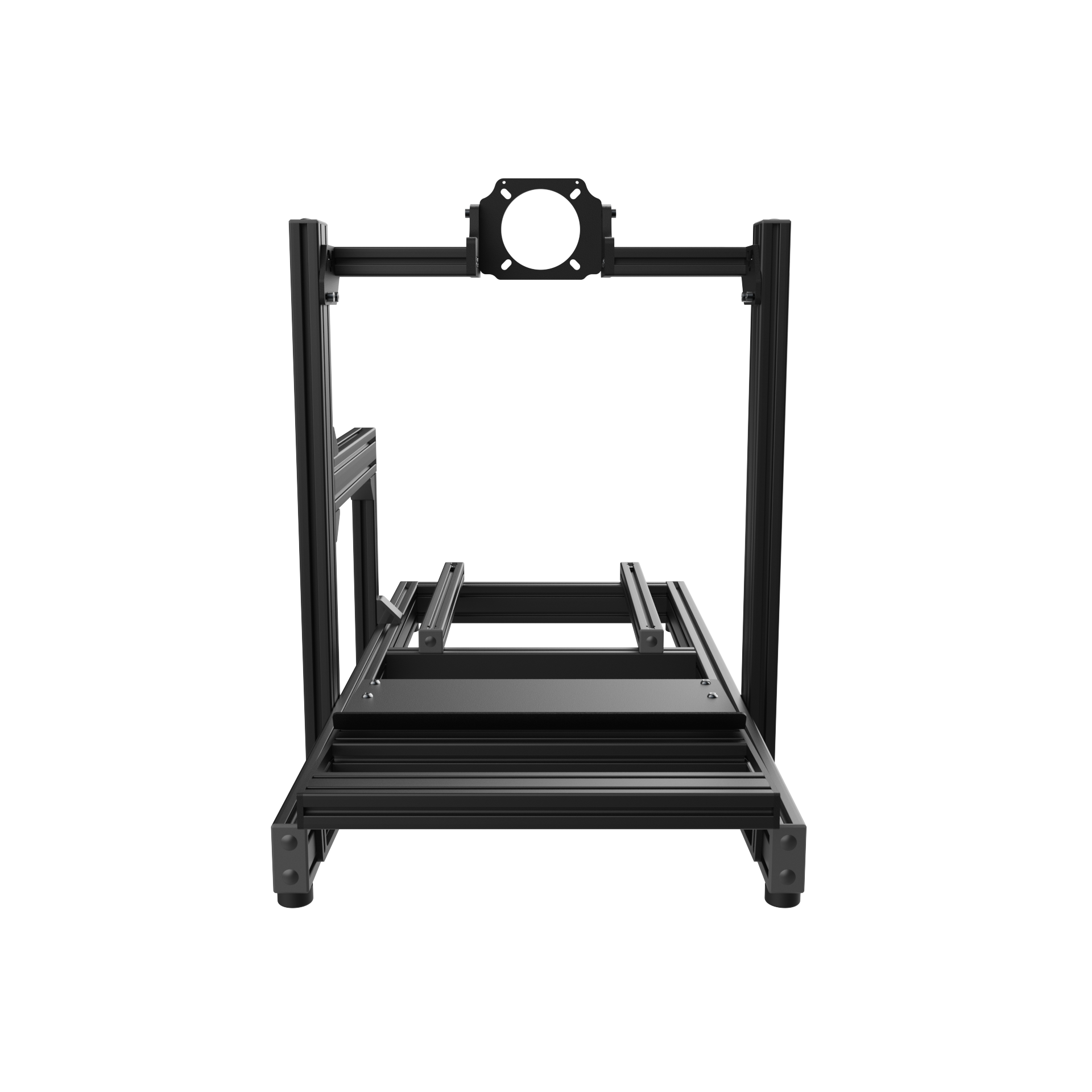

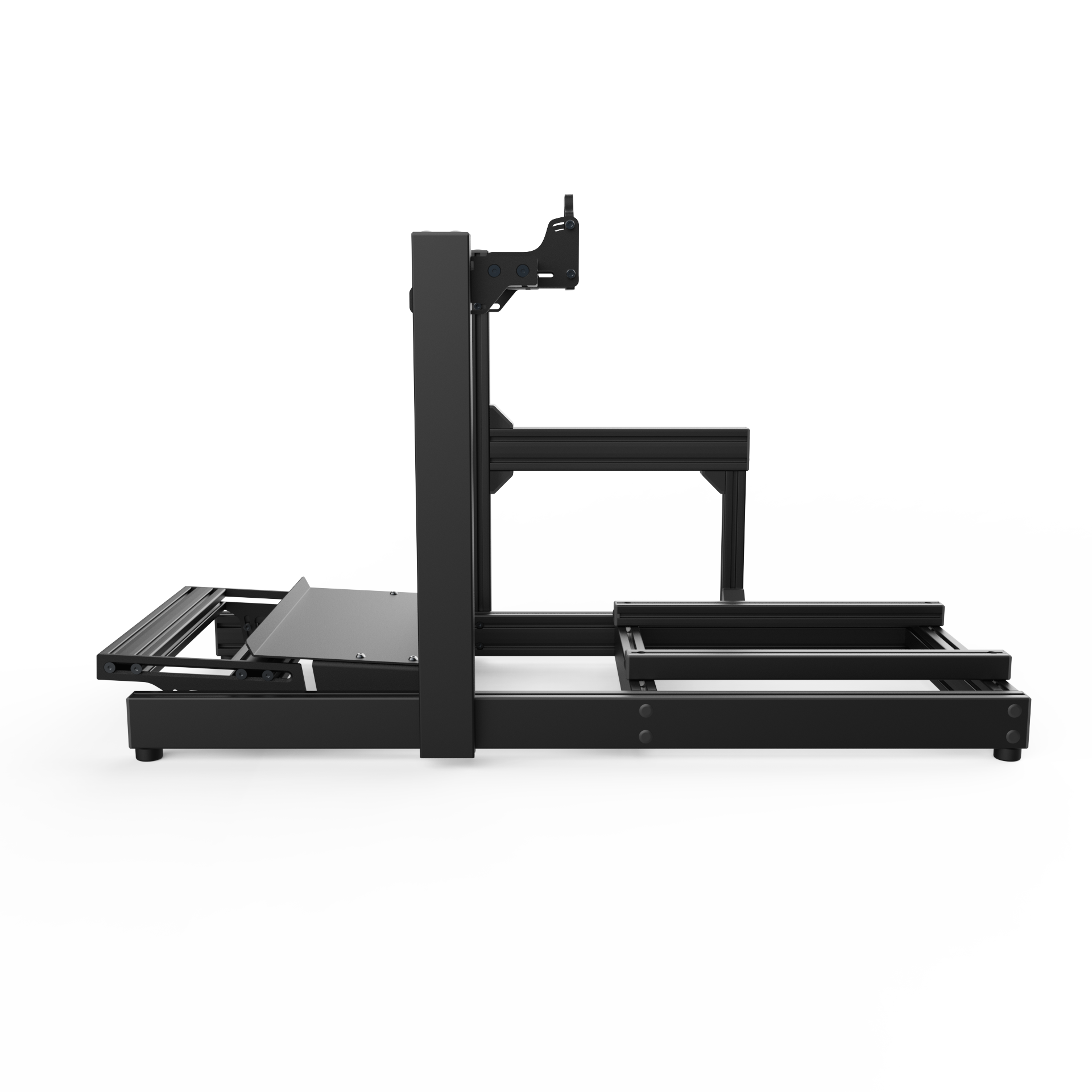

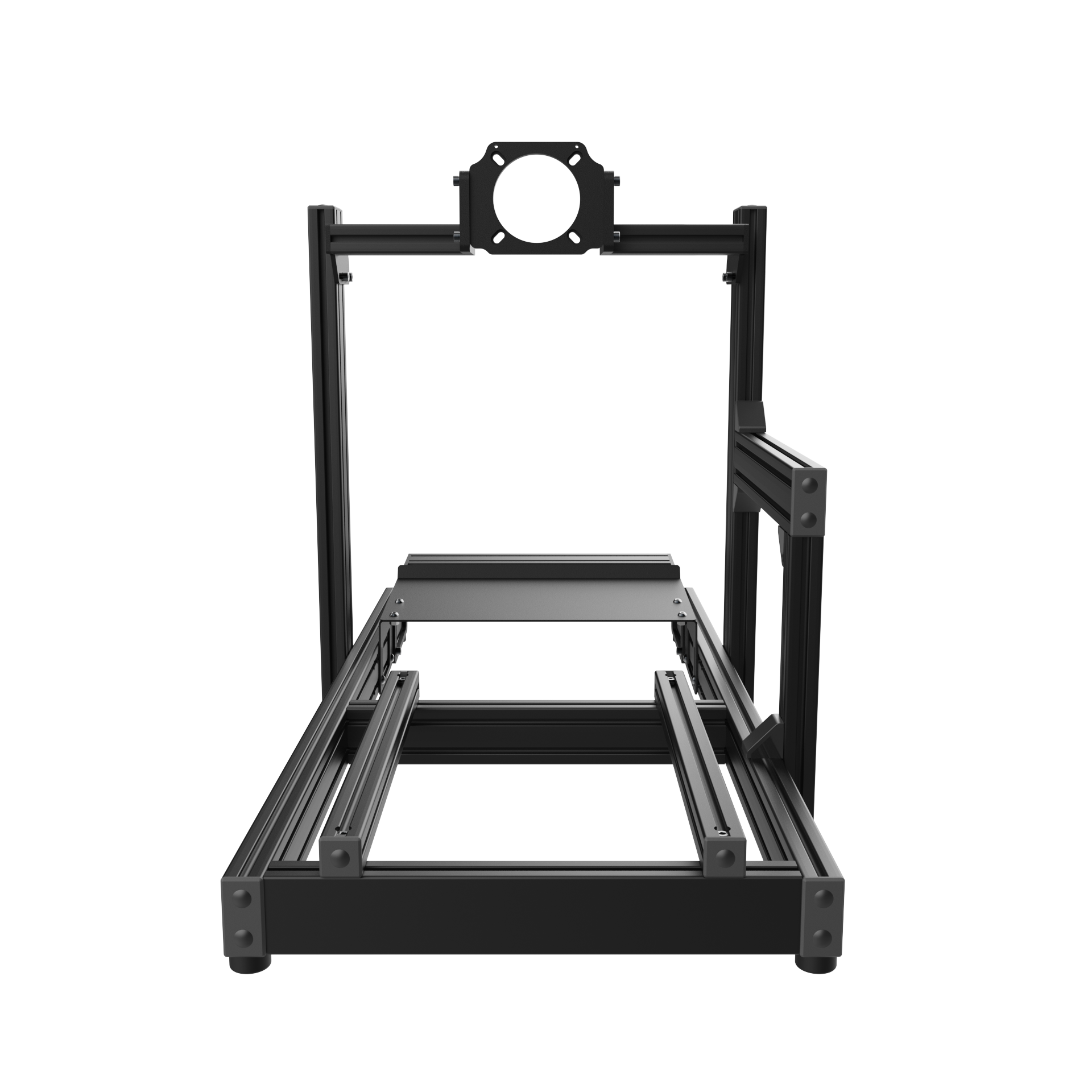

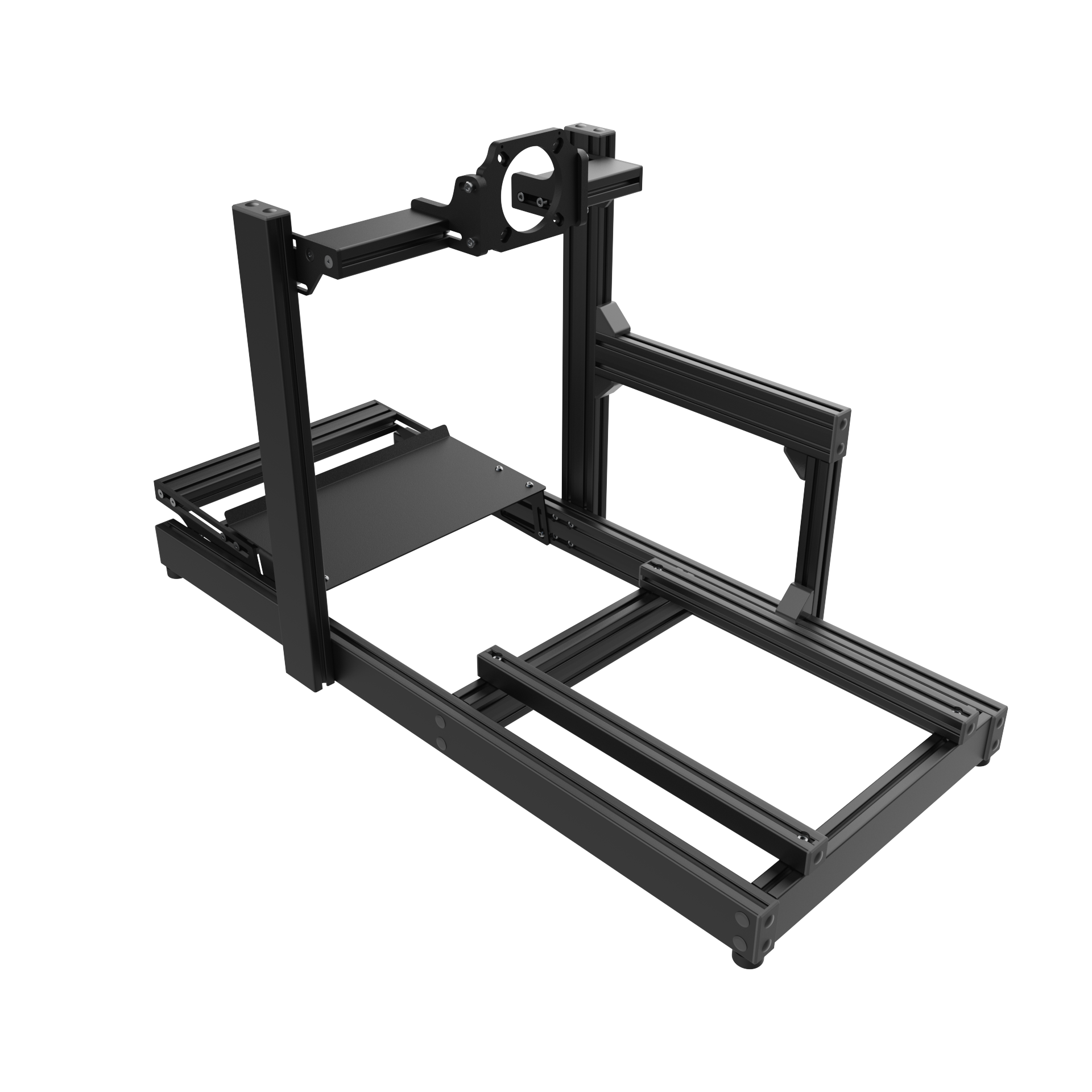

ASR 3 (Gen 2) Sim Racing Chassis
A premium mid-range sim racing chassis built for strength, adjustability, and value. The ASR 3 uses a 3" aluminum base and a no-flex, no-compromise design to deliver the same trusted stability found in Advanced SimRacing’s higher-end models—ideal for belt-driven and direct-drive setups.
- 3″ × 1.5″ extruded aluminum base for solid, race-ready rigidity
- Zero-flex design with no weak points, even under load
- Gen 2 hardware for easier, faster assembly and improved strength
- Fully adjustable pedal and wheel mounting positions
- Compatible with belt and direct-drive wheelbases
features

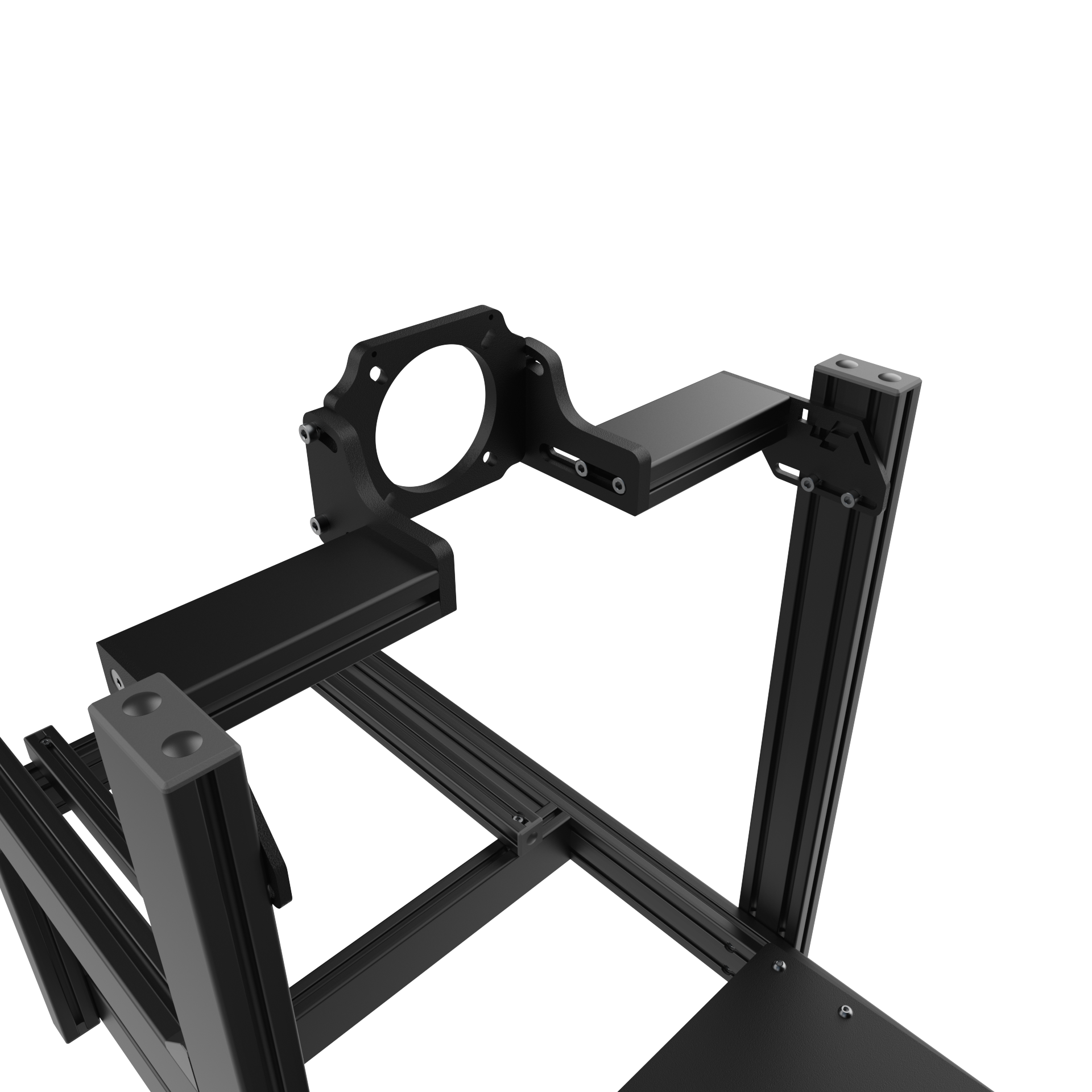

New Wheel Deck Design - Enhanced adjustability for optimal wheelbase positioning.
Flat Face Extruded Aluminum Profile - Updated with our signature Generation 2 profile for a clean, refined look.
Streamlined Assembly - Fewer parts and a faster build, without sacrificing stability or rigidity.

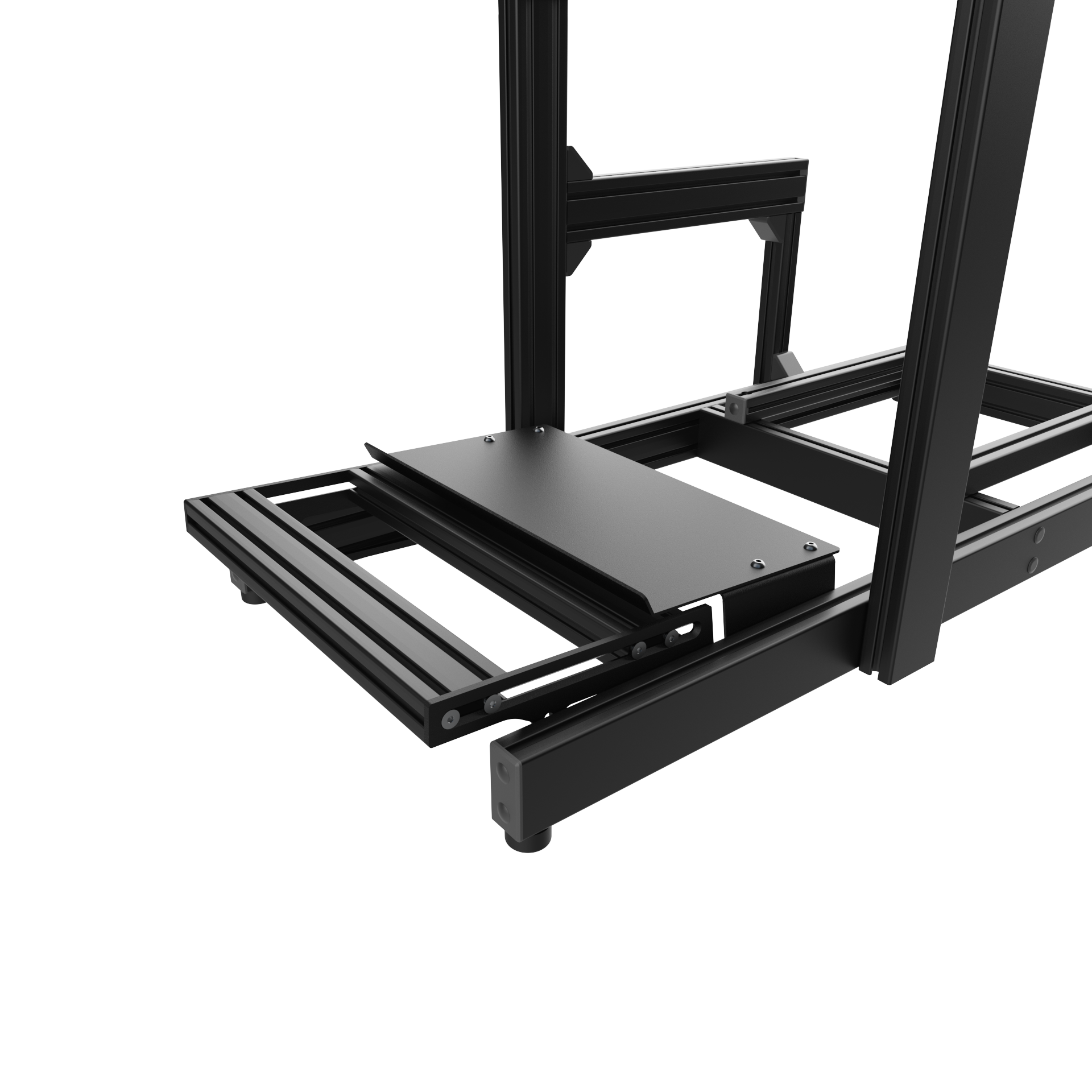

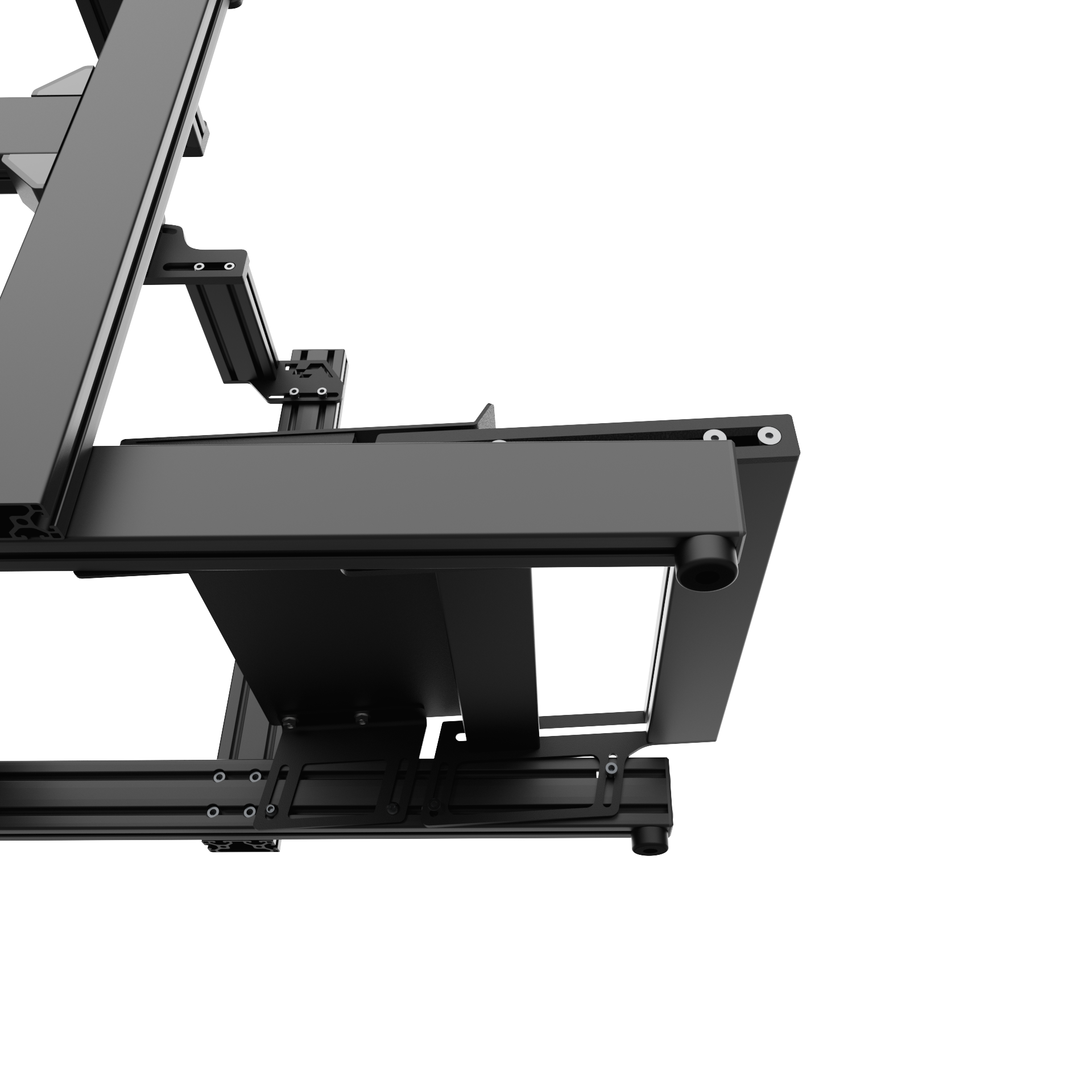

Upgraded Pedal Tray & Heel Rest - New aluminum design with industry-leading adjustability and compatibility.
Improved Rigidity - Lessons from our flagship ASR PRO applied for maximum stability in a mid-range build.
No Compromises on Strength - Built for zero flex—supports all belt-driven and direct drive wheelbases.
Top-Grade Aluminum Construction - Made from Canadian-sourced alloy aluminum. Durable, precise, and reliable.
Durable Powder Coat Finish - Matte black, scratch-resistant, and built to last—inside and out.
specifications
Chassis Profile Dimensions: 76mm x 38mm (3" x 1.5") aluminium extrusion for both base and steering column
Base Length: 1270mm (50")
Base Width: 560mm (22")
Chassis Height (from adjustable rubber feet to top of steering column): 710mm (28")
Weight (Assembled, without accessories): Approx. 32kg (71 lbs)
what's included
-
- 2 x Aluminum profile: 1270 mm x 76 mm x 38 mm
- 2 x Aluminum profile: 711 mm x 76 mm x 38 mm
- 2 x Aluminum profile: 483 mm x 76 mm x 38 mm
- 2 x Aluminum profile: 470 mm x 76 mm x 38 mm
- 1 x Aluminum profile: 457 mm x 76 mm x 38 mm
- 2 x Aluminum profile: 559 mm x 38 mm x 38 mm
- 1 x Aluminum profile: 330 mm x 38 mm x 38 mm
-
- 2 x Pedal Tray side brackets
- Left and Right Heel Rest Side Brackets
- Heel Rest Plate
- 8 x Corner Gussets and Plastic Caps
- 22 x M8 Screws (35mm)
- 22 x M8 Screws (16mm)
- 12 x M8 Screws (12mm)
- 4 x M8 locknuts
- 36 x M8 T-Nuts
- 5 x 38 mm Endcaps
- 7 x 76 mm Endcaps
- 19 x Pushpins
- 4 x Rubber feet
- 4 x M6 Screws (20mm)
- 4 x M6 T-Nuts
-
Common Content
- 8 x Flathead screws (16mm)
- 2 x Aluminum profile 175 mm x 76 mm x 38 mm
- 2 x wheel deck brackets
- Standard Steel Plate
- 2 x 76 mm endcaps
- 4 x pushpins
- 2 x DD side brackets (L & R)
- 2 x CSL DD spacers
- 4 x M8 Screws (16mm)
- 4 x M8 Screws (20mm)
- 2 x DD side brackets (L & R)
- 1 x Front Mount Plate
- 4 x M8 screws (16mm)
- 4 x M8 screws (20mm)
- 2 x DD side brackets (L & R)
- 1 x Asetek Mount Plate
- 4 x M8 screws (16mm)
- 4 x M8 screws (20mm)
-
Standard Wheel Deck
Logitech products
Thrustmaster products
Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
Simagic M10
AccuForce Pro V2 Steering System
Moza R9, R12, R16, R21
MOZA R5 (Only back two bolts)Fanatec (Podium DD & CSL DD Side Mount)
Fanatec Podium DD1 & DD2
Fanatec CSL DD
Fanatec GT DD Pro
Fanatec ClubSport DD and DD+Asetek (Front Mount)
All Asetek Wheel bases
Simucube & MiGE Motor (Front Mount)
Simucube 2 Sport, Pro & Ultimate
VRS Direct Force Pro
Simagic Alpha / Alpha Mini
Other MiGE Motor-type wheel basesSteel Pedal Plate
Sim Pedals Sprint
Sim Pedals Ultimate
Sim Pedals Ultimate+
Asetek SimSports Invicta Sim Racing Pedals
Heusinkveld
Thrustmaster products
Fanatec products (Except CSL Pedals)
Logitech products
Simtrecs ProPedal GT
Asetek SimSports Invicta Sim Racing Pedals
Simagic P1000 & P2000 & their inverted versions
And much more (please inquire for specific pedal sets)
