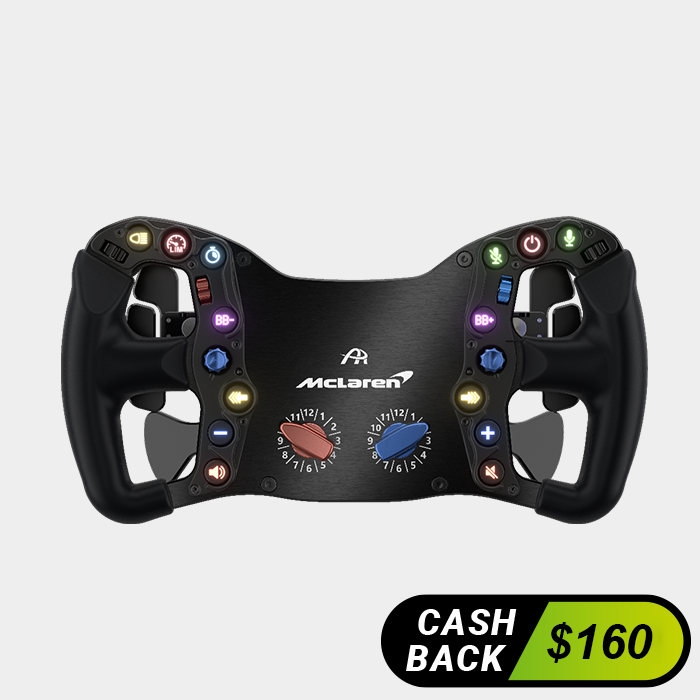

Ascher Racing McLaren Artura Pro

High Quality Finish

- Machined out of automotive aluminum

- Black anodized and laser engraved

- Brushed front plate surface finish

- Glass bed blasted paddle surface finish

RGB Backlighting

- Animated, telemetry-supported lighting can be set up

Freely Configurable Button Mapping

- Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotaries possible

Non-Linear Clutch Curves Adjustable

- Non-linear clutch curves adjustable: various predefined progressive/degressive/s curves selectable or individual definition possible

- Separate setting of left and right clutch possible

Encoder Pulse Width Adjustable

- Encoder pulse width adjustable (defines how long the button is triggered per click)

Settings That Can Be Made Directly On The Steering Wheel (Without Using Software)

- Bite point calibration in 0.1% & 1.0% steps

- Selection of the analog input mode (e.g., for clutches) & quick calibration of the analog axes directly on the steering wheel

Power Supply

- USB, no power injection necessary

Power Consumption / Battery Life

- Low power consumption of only max. 500mA according to USB specification

Compatibility

- Fanatec

- Asetek

- Simagic

- OSW

- Many others

Connection

- Cabled (USB)

McLAREN ESPORTS WHEEL

- Based on the official McLaren Artura GT4 wheel

- Uses identical components of real-racing steering wheel

- Esports optimized functionality

- Maximum grip level from ergonomically improved rubber grips and 300 mm wheel diameter used in the real race car

USB WHEEL

- Telemetry-based and animated RGB lighting

- Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotaries possible

- Non-linear clutch curves adjustable (various predefined progressive/degressive/s curves selectable or individual definition

- Encoder pulse width adjustable (defines how long the button is triggered per click)

- Selection of the analog input mode (e.g., for clutches) & quick calibration of the analog axes directly on the steering wheel without the use of software

- Low power consumption of only max. 500mA according to USB specification

- No power injection necessary

- Unrestricted operation with all PC mainboards

- Unrestricted operation with Asetek QR system

INTEGRATED 4” DASHBOARD & 21X RGB LED SHIFT LIGHTS

- 4" screen with high resolution

- 21x RGB LEDs (16 million colors)

- Official SimHub integration

- 16bit colors, 350 lm brightness

- Touch operation possible

- Seamlessly integrated

OVER 100 INPUTS

- 14 x RGB illuminated push buttons (16 Mio. colors); individually adjustable coloring and tactile feedback

- 4 x thumb encoder

- 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)

- 2 x 12-position rotary switches

- 2 x Gen6 magnetic and silenced motorsports double paddle shifters

- 2 x motorsports clutch paddles with electronic bite-point calibration

- Retrofittable single shifter

GEN6 MAGNETIC DOUBLE PADDLE SHIFTERS

- New generation of magnetic shifters developed from scratch for motorsport applications

- Machined and anodized out of automotive aluminum

- Proven strong snap-action force

- Silenced by damped rubber stops on both ends with unlimited precision due to tight tolerances

- Free of play due to preloaded ball bearings

- Marginal hysteresis for noise-free and precise gear changes

- No switches inside –extremely durable hall sensor

- Unlimited interchange possibilities due to identical mounting points for double shifter paddles

LASER-ETCHED BUTTONS

- Laser-etched button caps with most common symbols available

- Easily interchangeable due to two-piece-design – no need to open the wheel

- Additional labels for various common steering wheel inputs
