ASR 4
$1,650.00

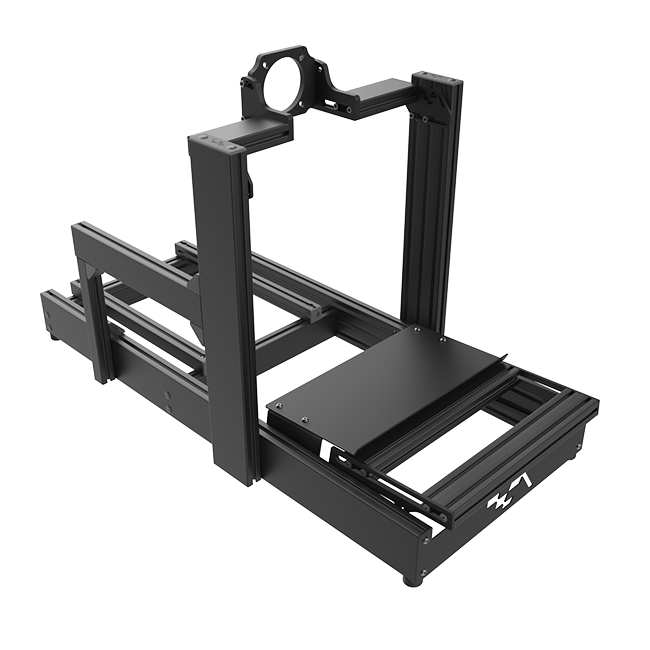

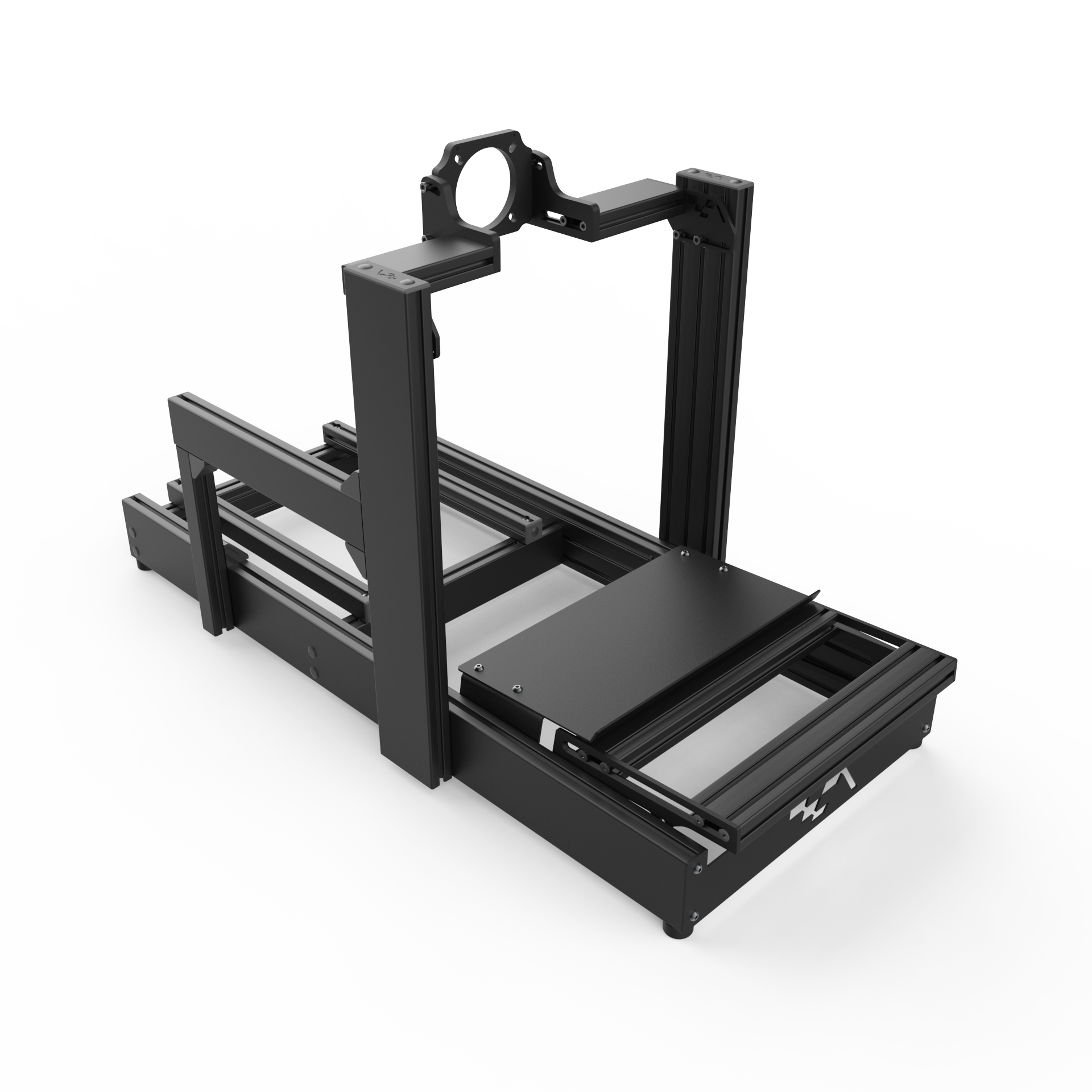

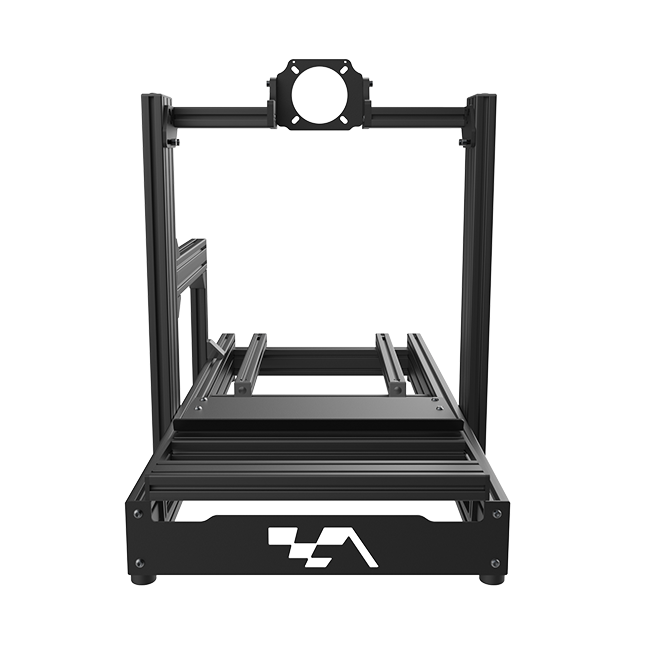

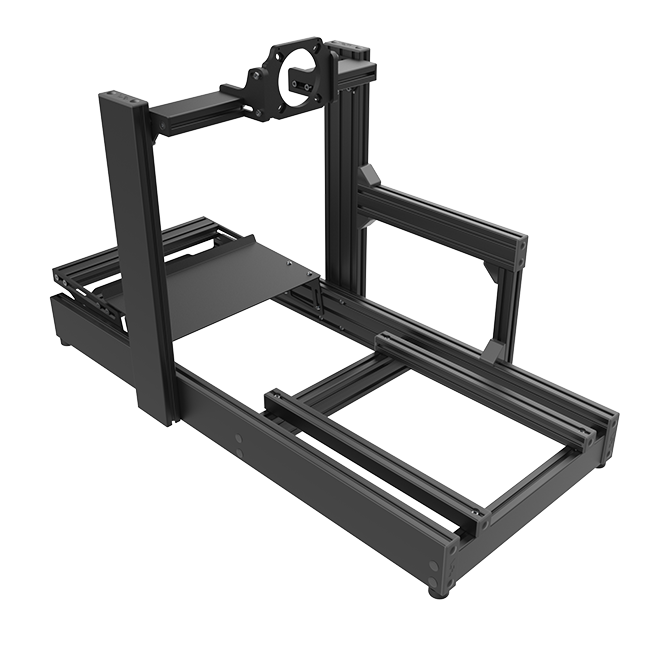

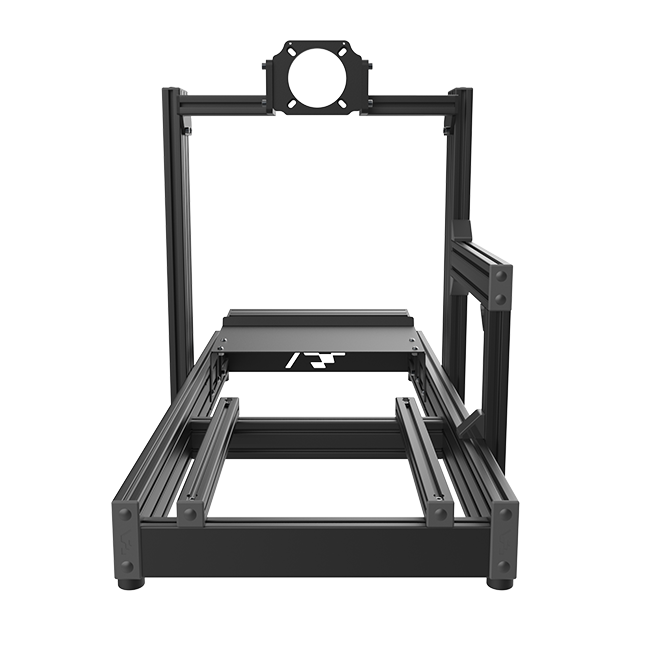

ASR 4 Flat‑Face (Gen 2) Sim Racing Chassis
A premium, professional-grade chassis engineered around a 4.5″ flat-face aluminum base and reinforced steering column. Built with zero-flex precision and crafted in Canada with durable matte-black powder coating, it’s designed for maximum stability and performance with high-end wheelbases.
- 4.5″ × 1.5″ flat‑face aluminum base for increased height and race-level rigidity

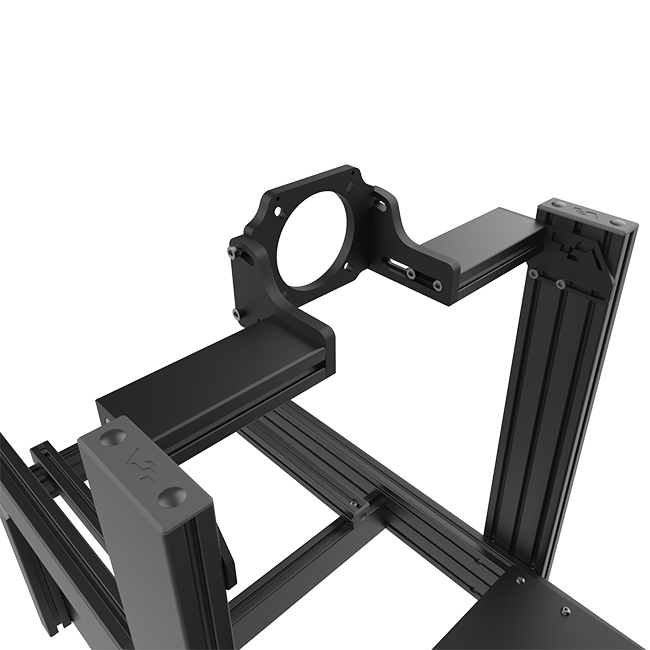

- Reinforced steering column delivers rock-solid support for powerful sim peripherals
- Zero‑flex, no‑weak‑points design ensures unmatched precision under load
- Durable matte-black proprietary powder coat, scratch-resistant and visually striking

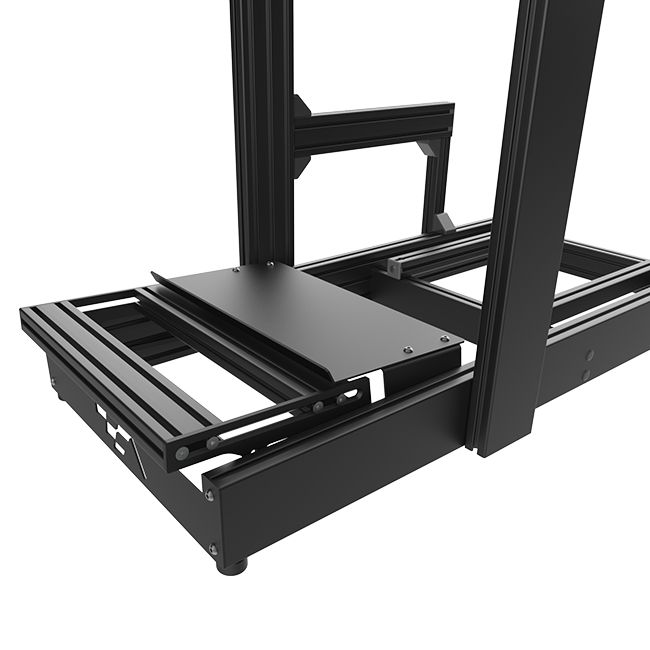

- Fully adjustable wheel deck & pedal plate, offering customized comfort and support
features
New Wheel Deck Design - Enhanced adjustability for optimal wheelbase positioning.
Flat Face Extruded Aluminum Profile – Signature Gen 2 profile with integrated cable management for a sleek, organised build.
Optimised Assembly Process – Streamlined design with fewer parts allows faster builds while maintaining rock-solid integrity.
Reinforced 114mm Aluminum Base – Taller profile and integrated steering column provide added strength, support, and ergonomic flexibility—even with powerful DD wheelbases and hydraulic pedals.
Extreme Rigidity for High-Torque Systems – Reinforced with top-grade aluminum and steel plates to eliminate flex, even with >30Nm direct drive wheelbases and high-end hydraulic pedals.
Durable Powder Coat Finish - Matte black, scratch-resistant, and built to last—inside and out.
Full Cable Management Integration – Updated front plate and frame cutouts enable clean routing and clutter-free aesthetics.
Premium Materials Made from high-grade alloy aluminum and precision steel, sourced in Canada.
specifications
Base Composition: 114mm x 38mm
Steering Column Composition: 114mm x 38mm
Base Length: 1270mm
Base Width: 560mm

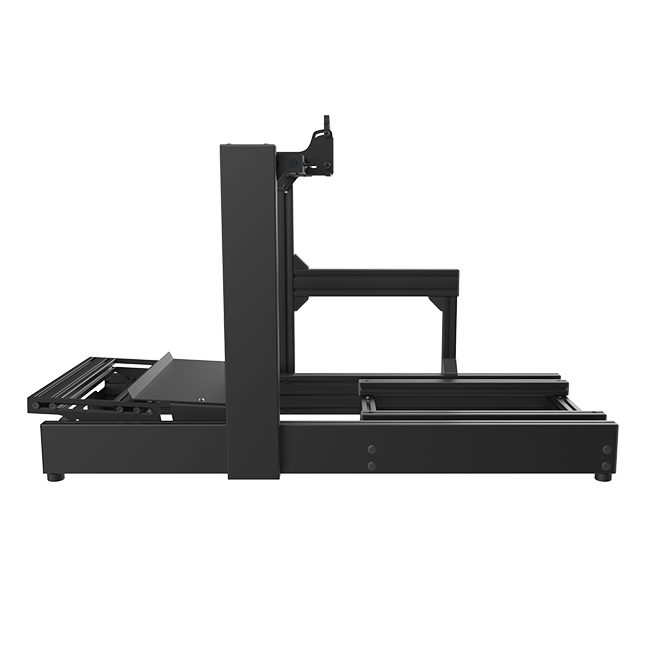

Chassis Height (from rubber feet to top of steering column): 737mm
Weight (assembled, without accessories): 52.6kg
what's included
- Box 1 (Aluminum)
- Box 2 (Aluminium)
- Box 3 (Aluminium)
- Box 4 (Hardware & Pedal Tray)
- Box 5 - Option (Classic Wheel Deck)
- Box 5 - Option (Pro Wheel Deck)
- Compatibility
-
- 1 x 40x160 profile - 1300mm
- 2 x 40x120 profile - 580mm
- 2 x 40x80 profile - 530mm
- 2 x 40x40 profile - 590mm
- 2 x 40x40 profile - 480mm
- 2 x 40x40 profile - 400mm
- 1 x Profile joiner plate - 160x80x6mm
-
- 1 x 40x80 profile - 580mm
- 2 x 40x40 profile - 530mm

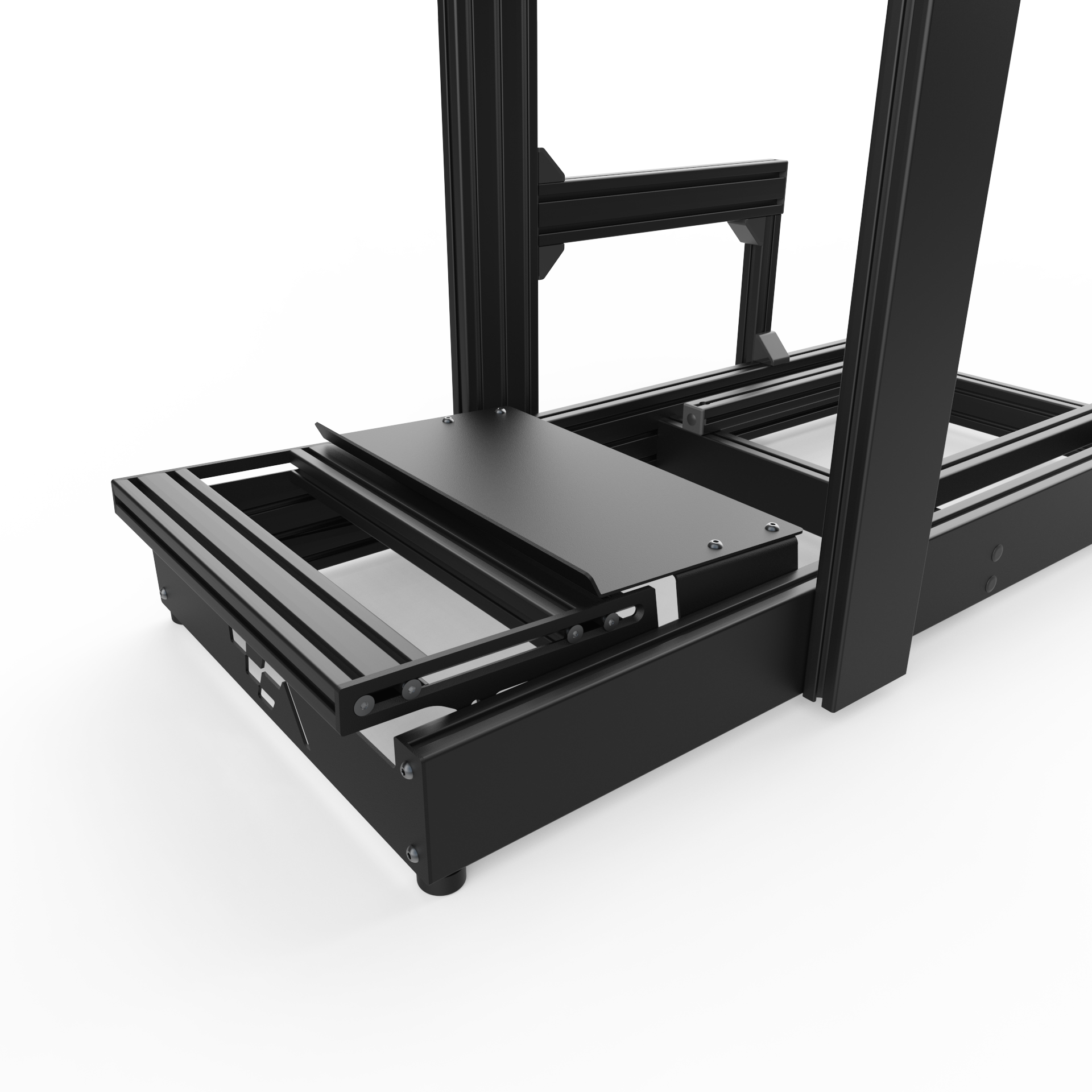

- 1 x Pedal Tray Bottom Plate - 580x280x5mm
- 2 x Pedal Tray Side Brackets
- 2 x Heel Rest Side Brackets
- 1 x Heel Rest Plate
- 8 x Corner Gussets
- 22 x M8 Screws (35 mm)
- 4 x M8 Screws (25 mm)
- 32 x M8 Screws (16 mm)
- 12 x M8 Screws (12 mm)
- 4 x M8 Locknuts
- 36 x M8 T-Nuts
- 16 x Endcaps
- 4 x Pass-through Cable Grommets
- 8 x Push Caps
- 16 x Push Pins
- 4 x Adjustable Feet
- 4 x M10 Locknuts
- 4 x Adjustable Feet Plates
-
- 2 x 40x80 profile - 400mm
- 2 x Wheel Deck Brackets
- 8 x M8 Screws (16 mm)
- 8 x M8 Screws (20 mm)
- 8 x M8 T-Nuts
- 1 x Wheel Deck Plate - 320x280x5mm
-
- 1 x Pedal Deck Mounting Profile - 580mm
- 1 x Pedal Deck Bottom Plate
- 2 x Side Mount Brackets
- 4 x M8 Screws (25 mm)
- 4 x M8 Screws (16 mm)
- 8 x M8 T-Nuts
- 4 x Endcaps
-
- 1 x Classic Wheel Deck Plate
- 2 x 40x80 profile - 400mm
- 2 x Wheel Deck Brackets
- 4 x M8 Screws (20 mm)
- 4 x M8 Screws (16 mm)
- 8 x M8 T-Nuts
- 4 x Push Pins
- 2 x Endcaps
-
- 1 x Pro Wheel Deck Plate
- 2 x Linear Guide Tracks
- 4 x Linear Guide Bearings
- 2 x 40x80 profile - 400mm
- 2 x Vertical Stopper Plates
- 2 x Horizontal Stopper Plates
- 2 x Side Mount Plates
- 12 x M8 Button Head Screws (12 mm)
- 8 x M5 Screws (16 mm)
- 6 x M5 Flat Head Screws (12 mm)
- 12 x M8 Flat Head Screws (16 mm)
-
- Wheel Base Compatibility
Logitech G29/G920
Thrustmaster T300, TX, TGT, and TS-XW
Fanatec CSL DD, GT DD Pro, DD1, DD2
Simagic Alpha Mini, Alpha, Alpha U
Simucube 2 Sport, Pro, Ultimate
Moza R5, R9, R16, R21
VRS DirectForce Pro
AccuForce V2
Asetek La Prima, Forte, Invicta
MiGE-based OSW systems - Pedal Compatibility
Simagic P1000, P2000, Inverted Versions
Heusinkveld Sprint, Ultimate, Ultimate+
Simtrecs ProPedal GT
VRS Pedals
Simforge Mark-1
MECA Cup1
RaceWerks S1 PRO
Asetek Pedals
Sim Coaches P1-2/3 Pro
Simworks PRO GT V3.1 LC
Fanatec ClubSport V3
HPP JBV 2/3 (angled tabs required)
NOT COMPATIBLE with Logitech G29 pedals
