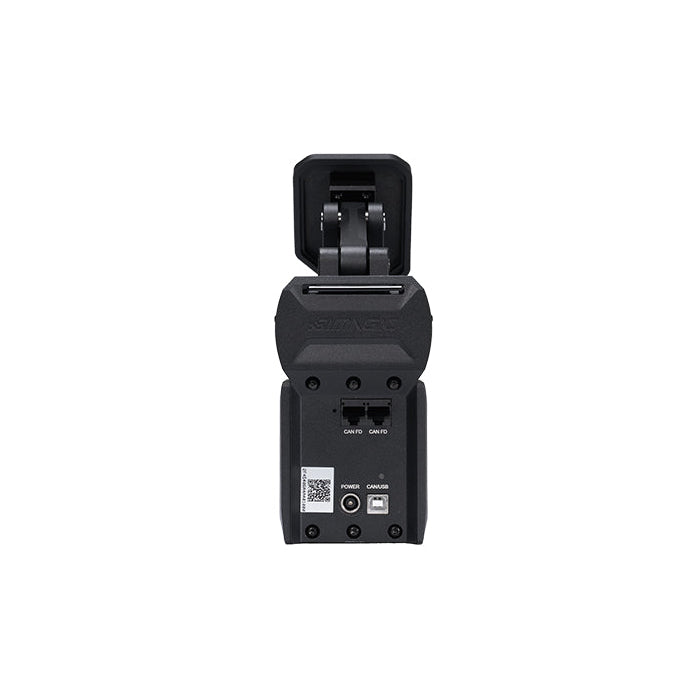

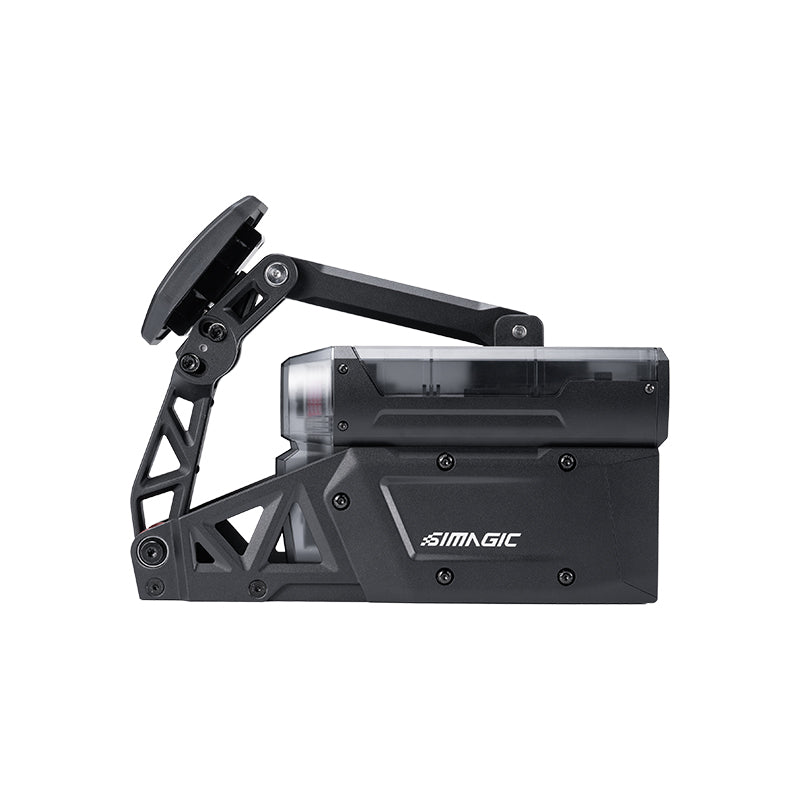

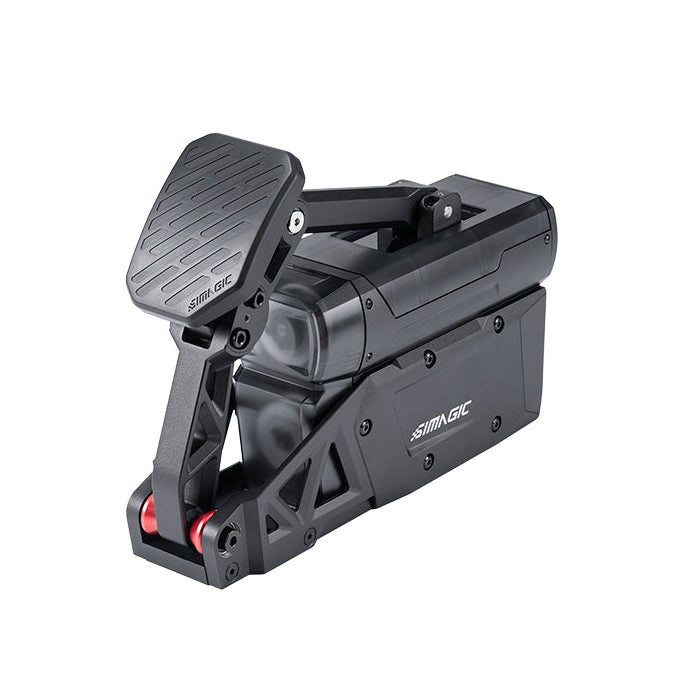

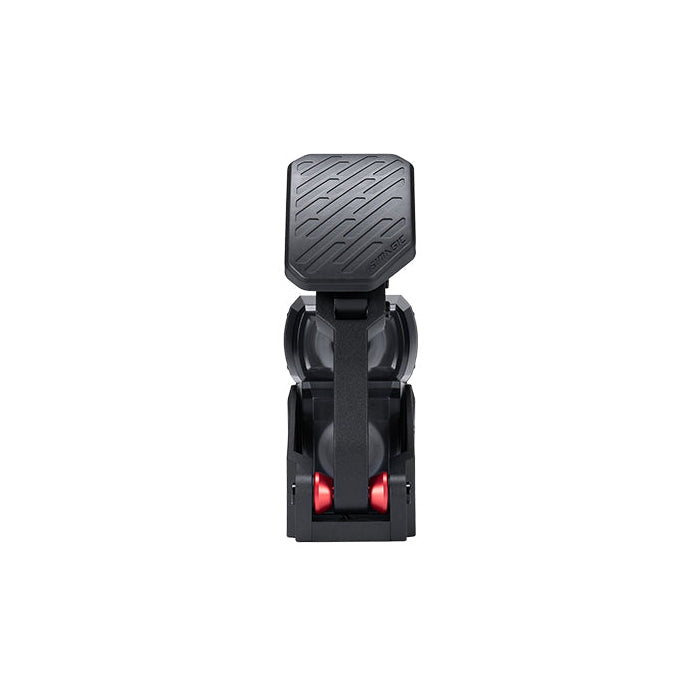

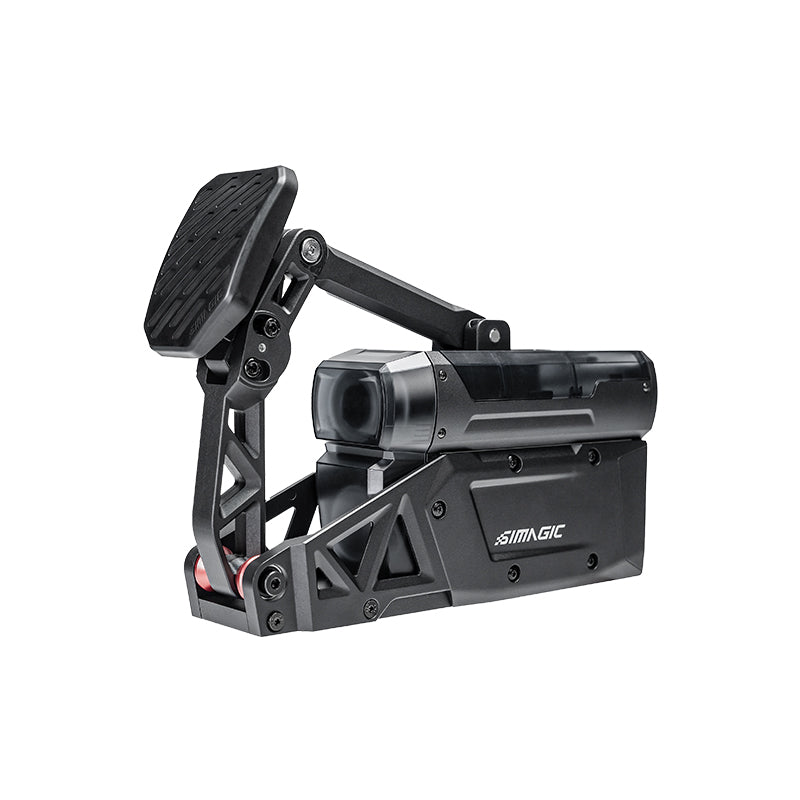

Simagic P-Active Active Pedal
$1,799.00$1,849.00
Fast Shipping (1–4 Business Day Delivery)
Local Support from Experienced Racers
Trusted Sim Racing Gear & Builds
Pre-order
Estimated arrival late November 2026. Pre-orders ship in the order received once stock lands.
Estimated arrival late November 2026. Pre-orders ship in the order received once stock lands.
The Simagic P-Active is a servo-driven active pedal. It recreates spring, elastomer and hydraulic pedal feel, and turns live telemetry, from ABS and wheel slip to RPM and gear changes, into feedback under your feet.
Dual 250kg load cell sensors sit directly behind the pedal face, with a 180kg software limit and 16-bit high precision. Switch between brake, throttle and clutch modes in SimPro Manager, then tune damping, friction, end stops and force curves.
Mounts to an existing Simagic P1000 or P2000, or directly onto aluminium profile, with the included adapter kits. A dedicated P-Active Baseplate is coming soon. Also available in the P-Active P1000-FB Bundle, or browse all Simagic pedals.
Product Features
Servo-Driven Feel
Spring, elastomer and hydraulic pedal feel
Telemetry Vibration
ABS, TC, wheel slip, RPM, gear shifts and more
Dual 250kg Load Cell Sensors
180kg software limit, 16-bit high precision
Brake, Throttle or Clutch
Assign the role in SimPro Manager
Raised Pivot
More forward stroke, less ankle rotation
2-Year Warranty
Backed by Simagic, supported locally
What's in the Box
- P-Active
- P1000 adapter kit
- P2000 profile adapter kit
- Screw kit
- Cable kit
- Quick guide
- Stickers
Mounting & Connection
- Simagic P1000 (included P1000 adapter kit). Not compatible with P1000i or P1000i-RS
- Simagic P2000 (included P2000 profile adapter kit)
- Aluminium profile (included P2000 profile adapter kit)
- P-Active Baseplate (optional accessory, coming soon). Supports P2000 pedal faces and third-party throttle and clutch pedals
- Connects to PC, or to a SIMAGIC base
- Multiple P-Active pedals link via Ethernet (RJ45) with one USB connection to the PC. Each pedal needs its own power supply
Shipping & Warranty
- Pre-order: Estimated arrival late November 2026. Pre-orders ship in the order received once stock lands, with standard delivery taking about 1-4 business days after dispatch.
- 2-Year Warranty: Covered by Simagic's 24-month warranty, with support handled locally by SimRigs in Melbourne.
Push Forward, Control Better
A raised pivot creates a more forward pedal stroke with less ankle rotation. Leg force is aligned for precise pressure control and a smoother release under heavy braking.
Every Force Accurately Detected
180kg software limit, 250kg sensor capacity. Mounted directly behind the pedal face, the sensor captures your foot pressure more directly for precise braking input.
100ms Full-Stroke Return
Full-stroke return in as little as 100ms delivers fast, controlled response. Switch between brake, throttle and clutch modes in software, all with the same hardware.
Active Feedback
Servo-driven control recreates spring, elastomer and hydraulic pedal feel, turning live telemetry, from ABS and wheel slip to RPM and gear changes, into feedback under your feet.
Build Your Setup

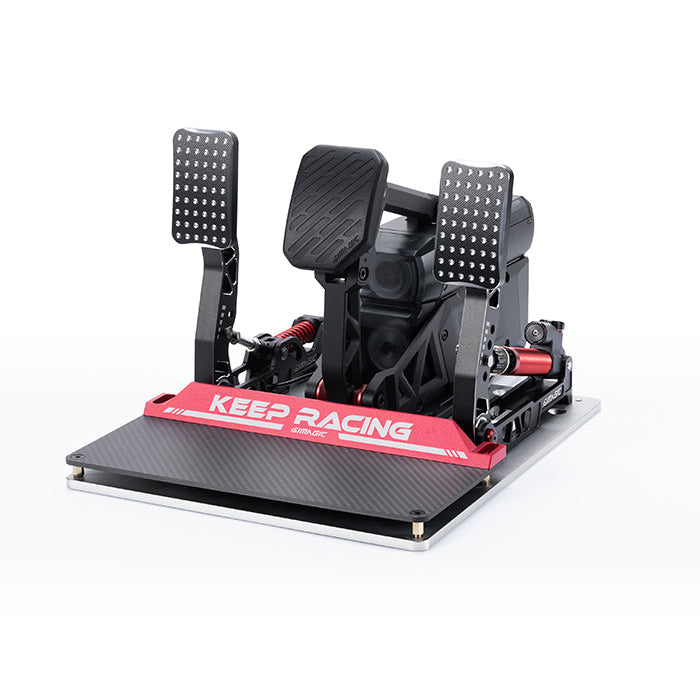

Mount P-Active on an existing Simagic pedal platform or the dedicated P-Active Baseplate (coming soon), which supports P2000 pedal faces and third-party throttle and clutch pedals. Start with an active brake and expand at your own pace.
Specifications
ModelP-Active
ConnectivityPC, SIMAGIC base
SensorCustom 250kg dual sensors
Software limit180kg
Resolution16-bit high resolution
PowerDC 48V 8.3A, 398W max
Pedal surfaceAluminium alloy, rubber
Adjustable travelSupported
Angle / positionAdjustable
LinearityAdjustable
Pedal forceAdjustable
Dead zoneAdjustable
Control boxIncluded
MaterialsAluminium alloy (CNC), PC, rubber
Dimensions335.9 x 87 x 241.5mm
Net weight6.12kg
Warranty2 years
- P-Active
- P1000 adapter kit
- P2000 profile adapter kit
- Screw kit
- Cable kit
- Quick guide
- Stickers
- Assign as brake, throttle or clutch, with official presets for each
- Force curve presets: Linear, Exponent, Logarithm and S-Curve
- Custom response curve with eight editable control points
- Adjustable dead zone at the start and end of travel
- Damping on/off, with compression and rebound damping (0-100%)
- Friction on/off, with adjustable intensity (0-100%)
- Front stop and back stop: Soft, Standard or Firm
- Telemetry feedback: ABS, TC, wheel lock, wheel slip, RPM, clutch bite point and gear shifts
- Official and custom presets in SimPro Manager
- Adjustable pedal surface angle, removable pedal surface cover
- Simagic P1000 (included P1000 adapter kit). Not compatible with P1000i or P1000i-RS
- Simagic P2000 (included P2000 profile adapter kit)
- Aluminium profile (included P2000 profile adapter kit)
- P-Active Baseplate (optional accessory, coming soon). Supports P2000 pedal faces and third-party throttle and clutch pedals
- Connects to PC, or to a SIMAGIC base
- Multiple P-Active pedals link via Ethernet (RJ45) with one USB connection to the PC. Each pedal needs its own power supply
