Zeus Formula Steering Wheel
$849.00 - $1,199.00
The Simagic Zeus Formula is a 280mm F1-spec steering wheel built for open-wheel and prototype racing. Sixteen programmable RGB buttons, eight rotary encoders, two 7-way switches, modular paddle shifters, and up to 92 mappable inputs. A 5mm solid carbon fibre front plate and one-piece CNC-machined aluminium back cover deliver formula-grade rigidity. Compatible with Alpha EVO, Alpha series, and most third-party wheelbases.
Fast Shipping (1–4 Business Day Delivery)
Local Support from Experienced Racers
Trusted Sim Racing Gear & Builds
280mm Formula Wheel
Authentic open-wheel proportions
Up to 92 Mappable Inputs
16 RGB buttons, 4 encoders, 4 thumb encoders
Modular Paddle System
Dual, triple, push-pull, single
MagicDash 4 Compatible
Full-colour telemetry display
CNC Aluminium Build
Carbon front plate, one-piece aluminium back
UP+ Ecosystem
Maglink Pro, AirLink, SimHub compatible
- Zeus Formula steering wheel
- Zeus QR50 quick release (pre-installed)
- MagicDash 4 display (Included only in optional addon)
- Accessory pack (tweezers, 2mm hex wrench)
- Envelope pack (button stickers, quick guide, Simagic logo sticker, USB-C cable)
- Orders are typically processed and shipped within 1-2 business days, with standard delivery taking about 1-4 business days after dispatch.
- For pre-order items, your order will be shipped once all products are in stock. If you would like your in-stock items earlier, please contact us.
- 2-Year Warranty: All Simagic products are covered for 2 years from the date of purchase.
Find Your Setup
Which connectivity option do I need?
1What wheelbase are you using?
2Does your Zeus wheel include the MagicDash 4 screen?

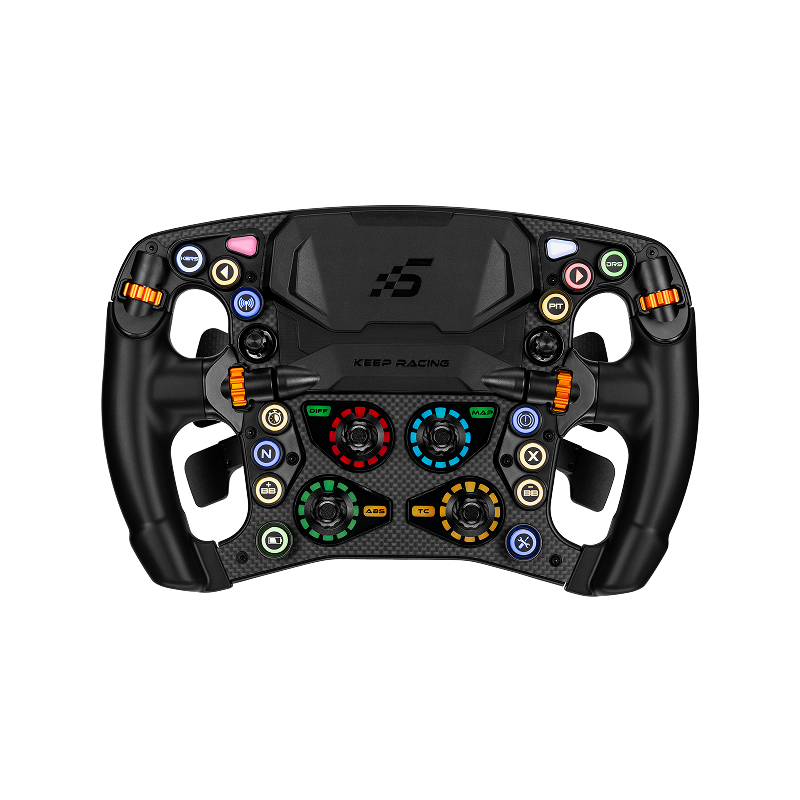

ZEUS FORMULA
Open-wheel performance, formula-grade build
The Zeus Formula is a 280mm F1-standard steering wheel built for drivers who race open-wheel and prototype cars at the limit. Sixteen programmable RGB buttons, four 12-position rotary encoders, four thumb encoders, two 7-way switches, and modular paddle shifters - up to 92 mappable inputs in total. A 5mm solid carbon fibre front plate and one-piece CNC-machined aluminium back cover give it the rigidity and weight feel of a real formula wheel. Whether you race F1, F2, prototypes, or hypercars, the Zeus Formula is built for precision under pressure.
280MM F1 STANDARD
True formula proportions
UP TO 92 MAPPABLE INPUTS
16 buttons, 8 encoders, 2 switches
Modular paddle system
Dual, triple, push-pull, single
BUILT-IN RPM LIGHT BAR
Telemetry-linked shift lighting
MagicDash 4 Compatible
Full-colour telemetry display
UP+ ecosystem
Maglink Pro, AirLink, SimHub compatible

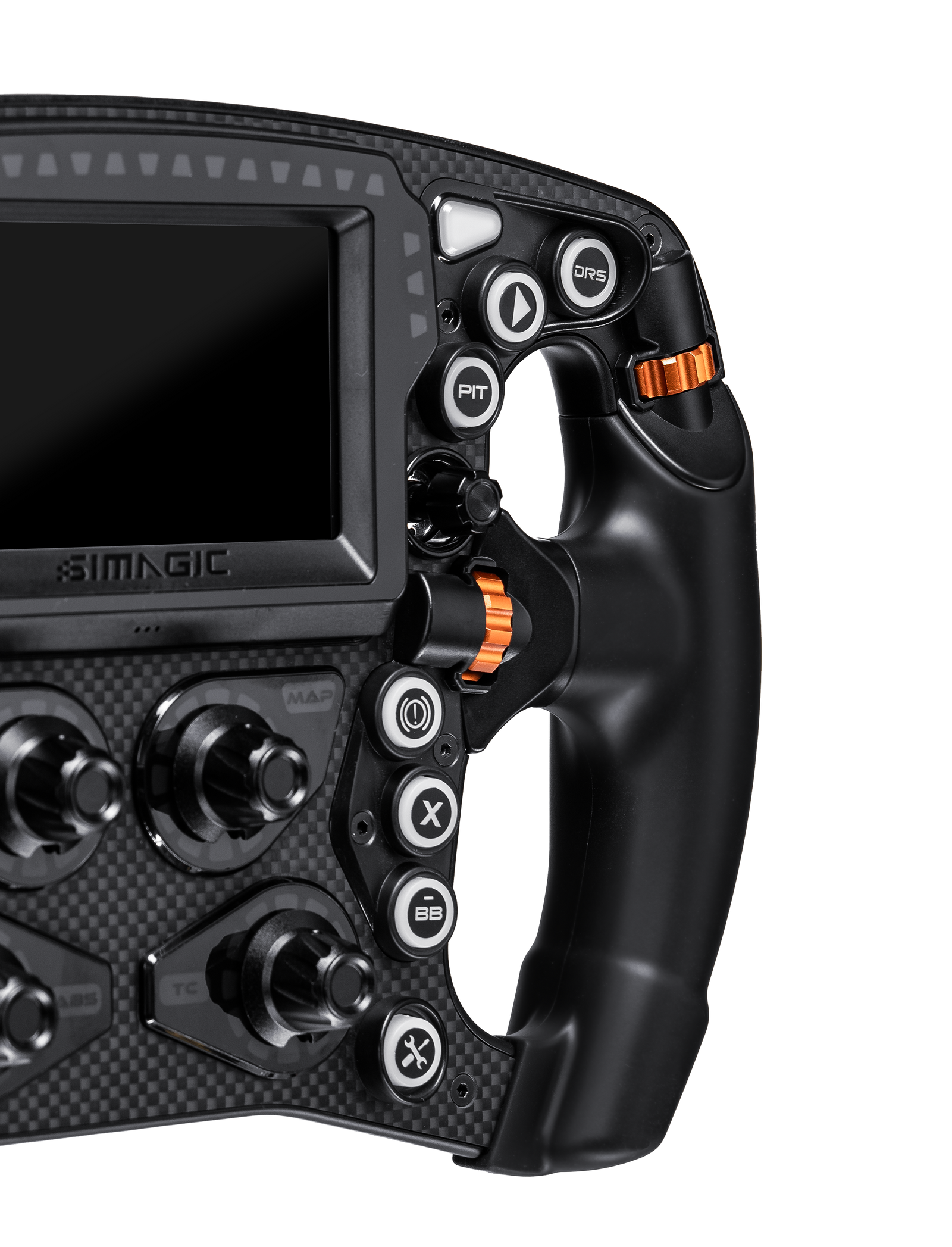

HIGH RIGIDITY, FORMULA-GRADE FINISH
The Zeus Formula is built around a 5mm solid carbon fibre front plate and a one-piece CNC-machined aluminium alloy back cover. Every knob, encoder cap, and switch is machined from solid aluminium. There is no plastic in the structural path. The result is a wheel that feels like a real formula wheel in your hands, rigid, weighted, and uncompromising over long stints.
- Carbon fibre front plate: 5mm solid construction, formula-grade rigidity
- One-piece CNC back cover: machined aluminium alloy, no flex under load
- Premium controls: all knobs, caps, and switches machined from solid aluminium
- Refined finishing: hand-finished detail across the chassis and grip junction
INNOVATIVE THREE-LAYER GRIP
The Zeus Formula uses a three-layer silicone grip designed to balance durability and comfort across long stints. A steel core delivers structural rigidity. An injection-moulded inner layer holds the shape and protects the wiring path. The outer silicone surface gives you a tactile, sweat-resistant grip that holds up race after race.
- Steel core for structural rigidity
- Injection-moulded mid-layer for shape retention and cable protection
- Silicone outer layer for comfort, grip, and sweat resistance

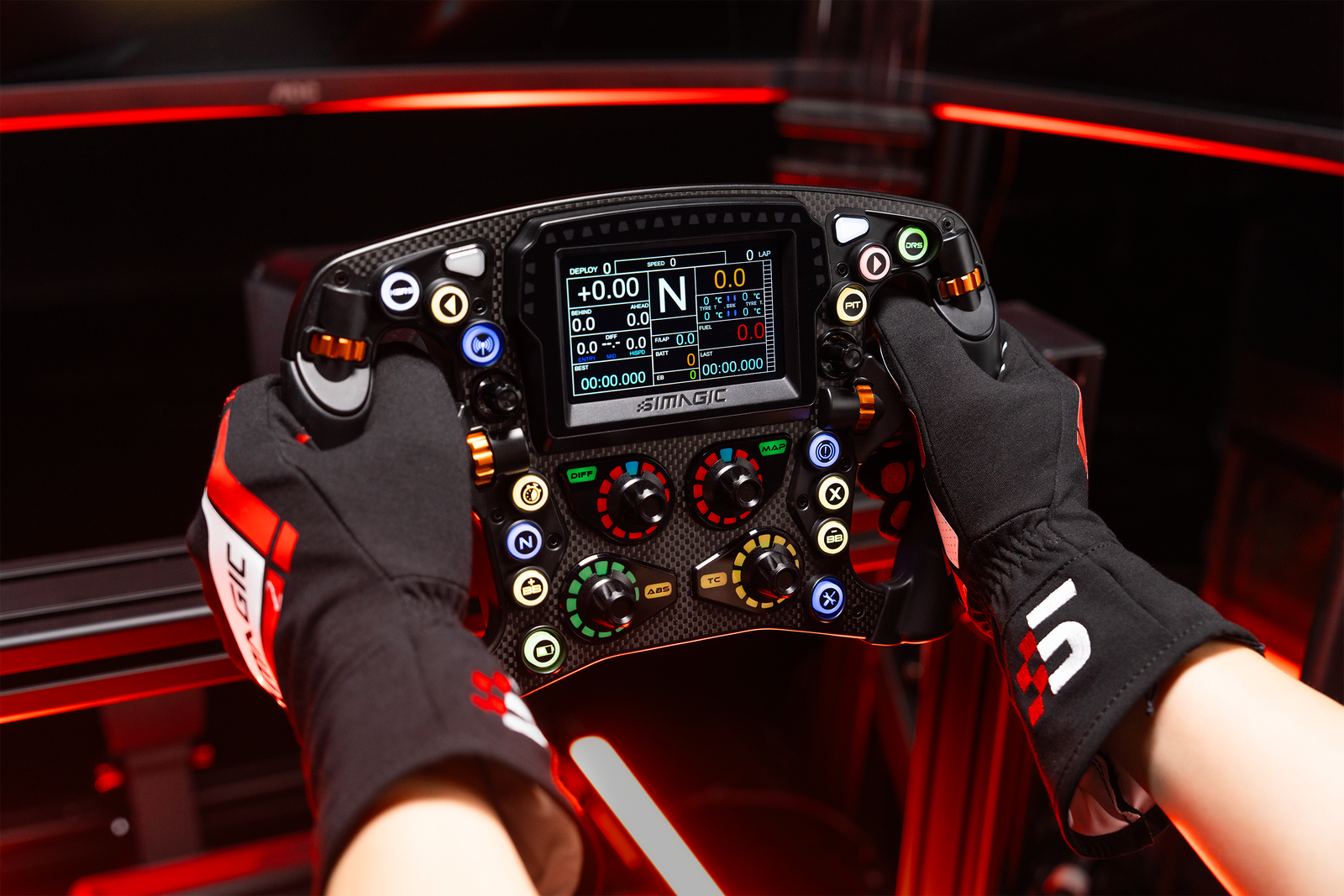

EVERY INPUT WITHIN REACH
The control layout gives you sixteen programmable RGB buttons, two 7-way switches, four 12-position rotary encoders, and four thumb encoders. Up to 92 mappable inputs in total — enough to run every assist, control, and overlay on a modern formula or prototype car without ever taking a hand off the wheel.
- Sixteen programmable RGB buttons with colour and behaviour tied to telemetry through SimPro Manager
- Two 7-way funky switches for fast in-race menu navigation
- Four 12-position programmable encoders with absolute or incremental mode — ideal for traction control, brake bias, fuel mix, and engine mapping
- Four thumb rotary encoders for fast on-the-fly adjustments without releasing the wheel

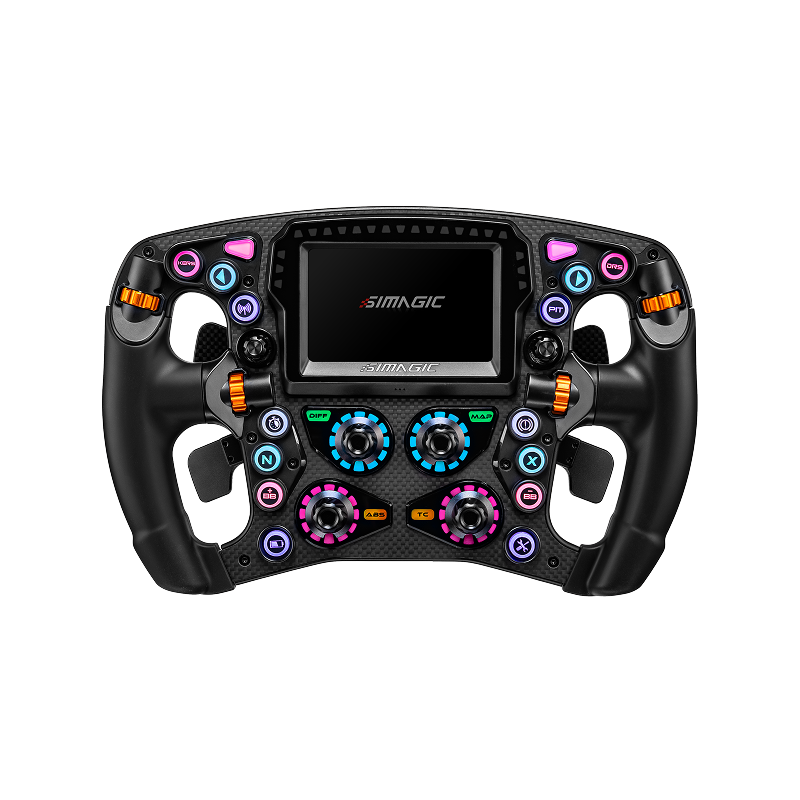

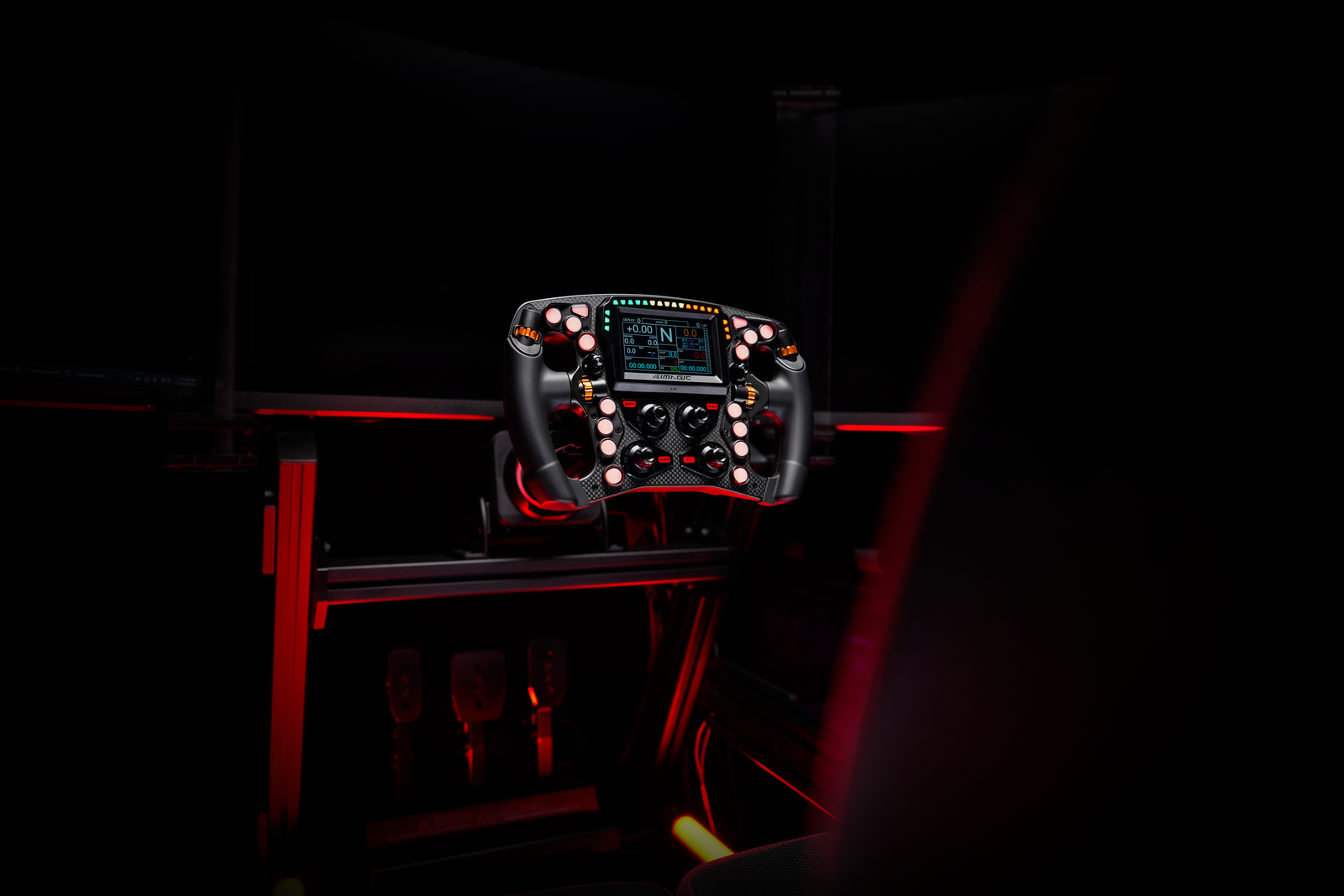

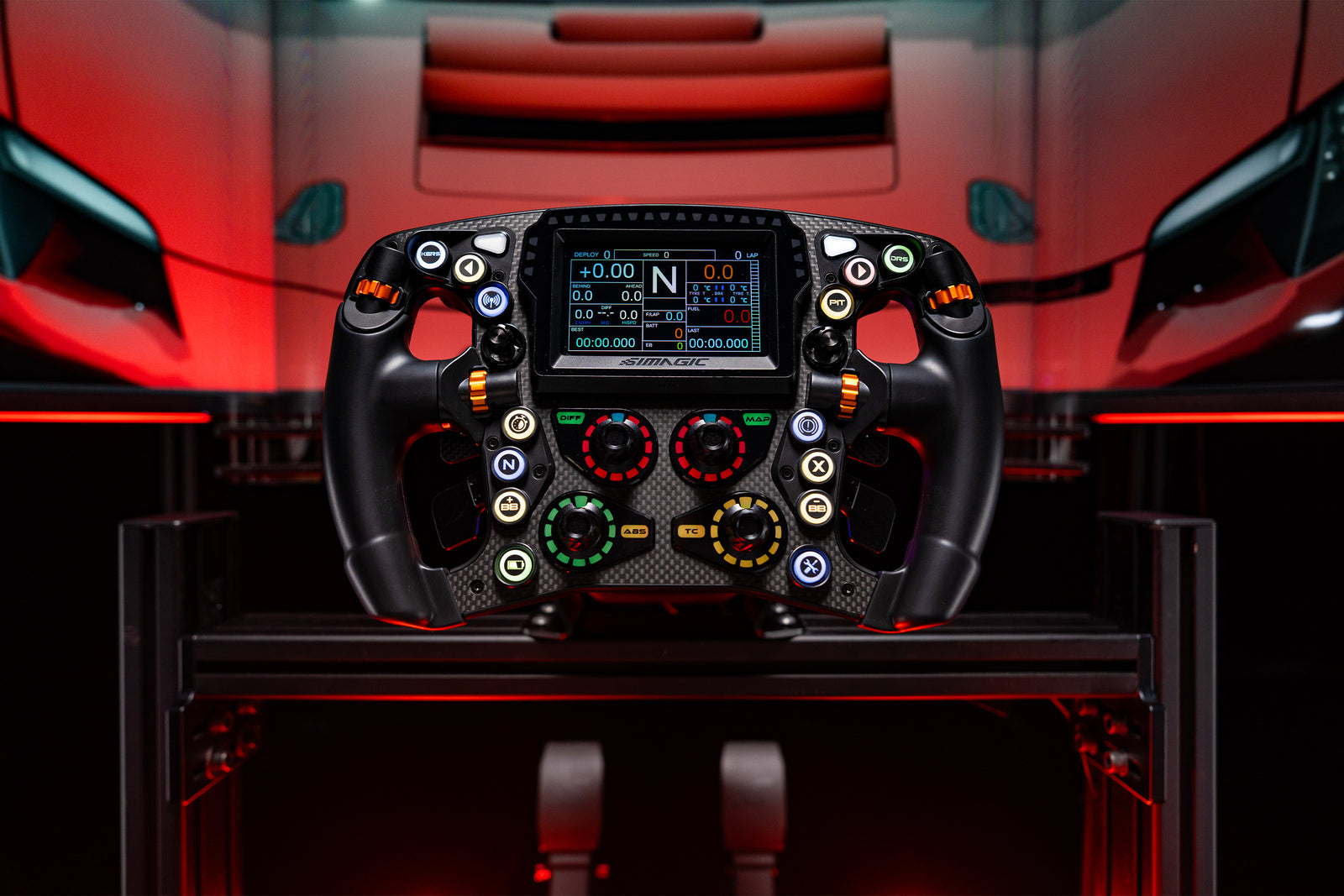

A full-colour telemetry display
Built for MagicDash 4
Your Zeus Formula is compatible with the MagicDash 4 display. A 3.97-inch high-resolution screen mounted directly on the wheel, running official Simagic presets out of the box and full SimHub integration for community dashboards.
Versatile mounting for any Zeus Formula configuration
Full SimHub compatibility so you can run the dashboards the community has already built
Official Simagic dashboards included for major titles
Touchscreen control for quick dashboard switching mid-session
Integrated touchpad for navigating menus and confirming inputs on-screen
Expanded compatibility
The Zeus Formula mounts directly to Simagic Alpha EVO wheelbases via the included Zeus QR50 quick release. For Alpha series and third-party wheelbases, the MagLink Pro range bridges Zeus Formula to your PC, so the wheel runs independently of your base electronics.
- Zeus QR50 quick release pre-installed, locks automatically when aligned

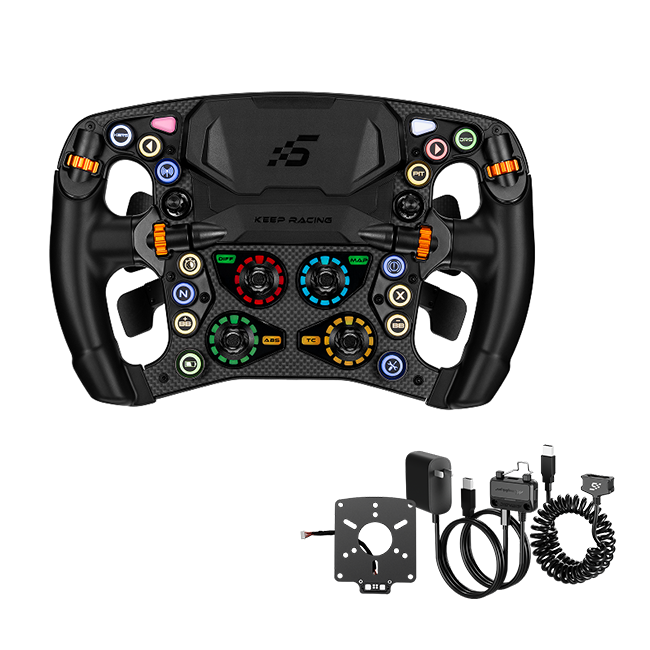

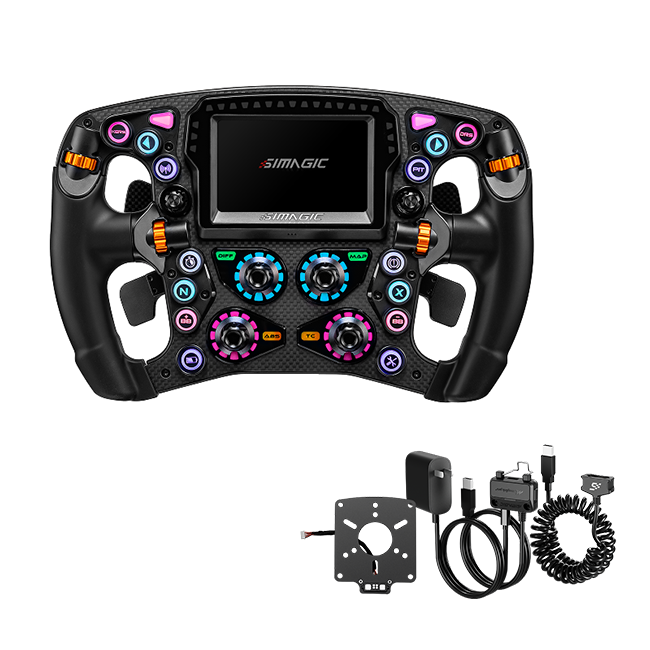

- MagLink Pro for direct PC connection on Alpha or third-party bases
- MagLink Pro Xtend for a wireless solution on Alpha series wheelbases

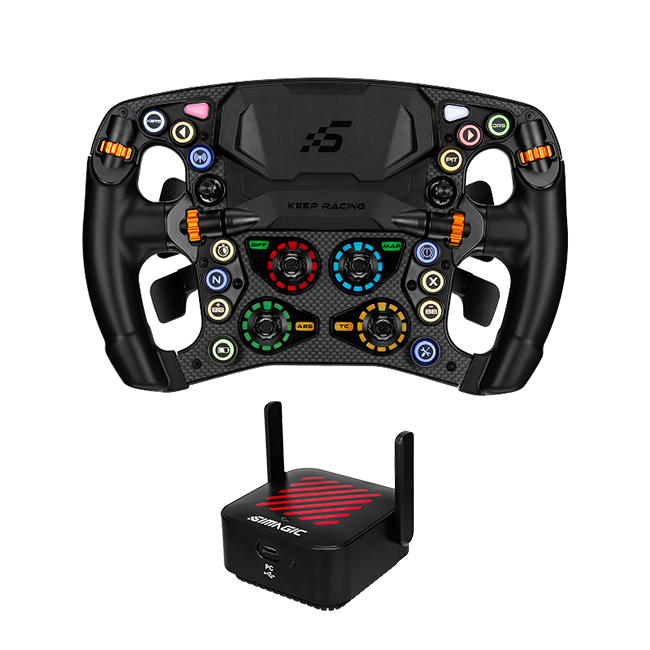

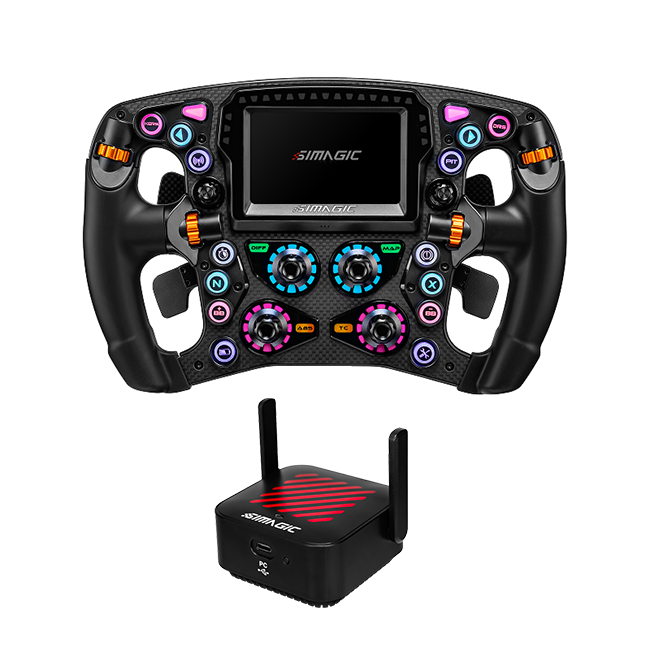

- AirLink Wireless Hotspot for low-latency wireless MagicDash 4 connection on Alpha EVO bases

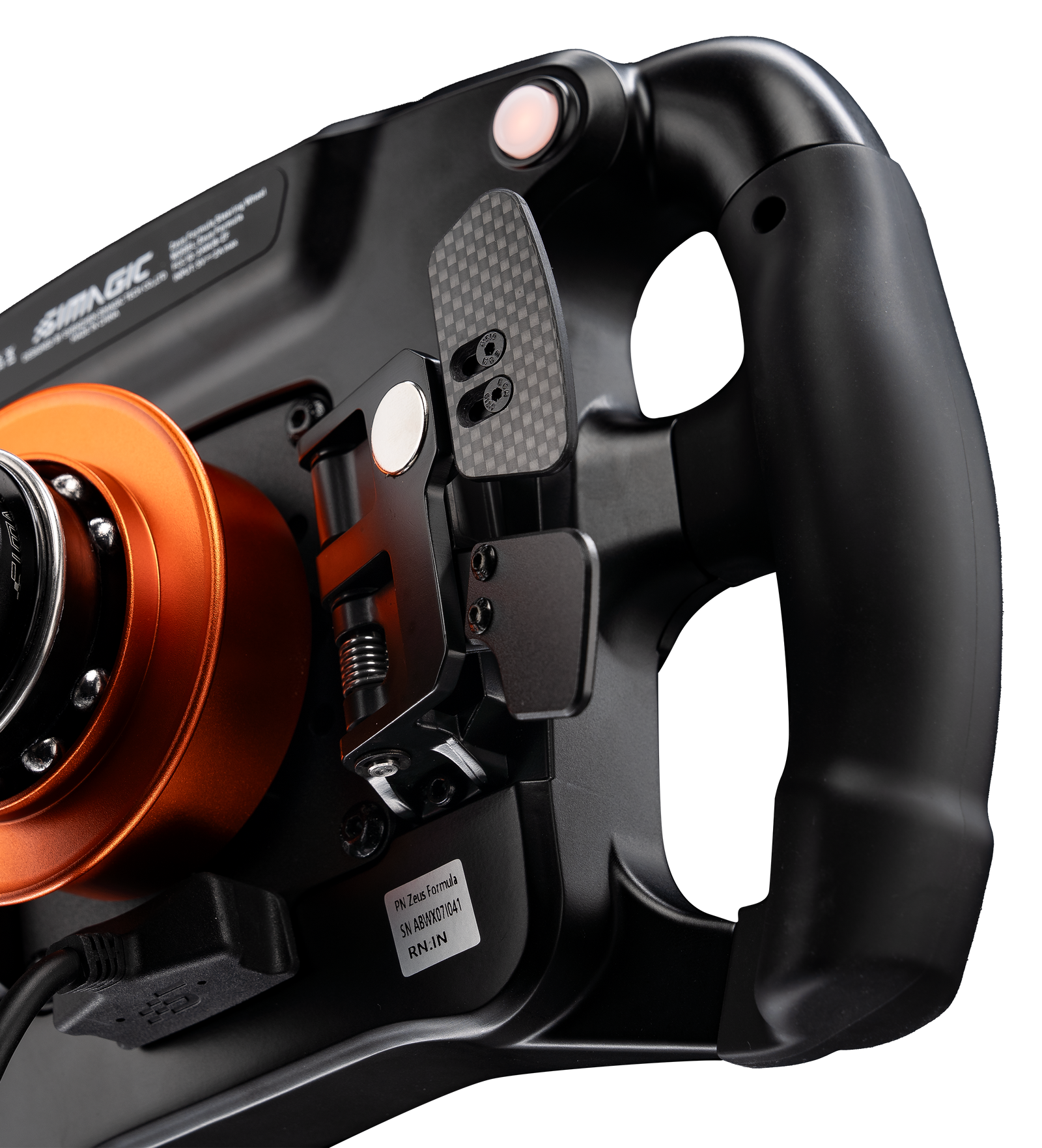

Adaptable paddle shifter modules
Match the paddles to the discipline.
The Zeus Formula ships with standard dual hall-effect paddles, with three alternative paddle modules available. Swap modules with a few screws to switch between disciplines. All modules use the same hall-effect sensors for consistent response across every configuration.
- Standard dual paddles (included) for shift up and shift down
- Triple paddle module which adds a clutch paddle for race starts
- Push-pull paddle module bidirectional for sequential shifting feel
- Single paddle module for hand-clutch or specialist setups
Connection and compatibility
The Zeus Formula works with the entire Simagic wheelbase range and with most major third-party bases. The connection method depends on which wheelbase you are using. Use the tool above to find which option fits your setup, or check the table below for the full picture.
Connection and Compatibility
Find your wheelbase below to see what you need and which SimHub features are supported.
| Your wheelbase | Required accessories | SimHub support |
|---|---|---|
| Alpha EVO Sport, Pro, Ultra | AirLink Wireless Hotspot Wireless connection for the MagicDash 4 screen | SimHub Dash Supported |
| Alpha Series M10, Mini, Alpha, Alpha U |
MagLink Pro or MagLink Pro Xtend
MagLink Pro: wired connection from wheel and MagicDash 4 to your PC. MagLink Pro Xtend: CNC aluminium QR adapter that makes the wheel side cable-free. Base side stays wired. |
SimHub Dash & Lighting Supported |
| Third-party bases Fanatec, Moza, others | MagLink Pro Wired connection from wheel and MagicDash 4 to your PC | SimHub Dash & Lighting Supported |
Alpha EVO
Sport, Pro, Ultra
Required
AirLink Wireless Hotspot
Wireless connection for the MagicDash 4 screen
SimHub
SimHub Dash Supported
Alpha Series
M10, Mini, Alpha, Alpha U
Required
MagLink Pro or MagLink Pro Xtend
MagLink Pro: wired connection from wheel and MagicDash 4 to your PC.MagLink Pro Xtend: CNC aluminium QR adapter that makes the wheel side cable-free. Base side stays wired.
SimHub
SimHub Dash & Lighting Supported
Third-party bases
Fanatec, Moza, others
Required
MagLink Pro
Wired connection from wheel and MagicDash 4 to your PC
SimHub
SimHub Dash & Lighting Supported
| Your wheelbase | Required accessories | SimHub support |
|---|---|---|
| Alpha EVO Sport, Pro, Ultra | None required Wheel mounts directly to base via Zeus QR50 | SimHub Not Supported |
| Alpha Series M10, Mini, Alpha, Alpha U |
MagLink Pro or MagLink Pro Xtend
MagLink Pro: wired connection from wheel to your PC. MagLink Pro Xtend: CNC aluminium QR adapter that makes the wheel side cable-free. Base side stays wired. |
SimHub Lighting Supported |
| Third-party bases Fanatec, Moza, others | MagLink Pro Wired connection to your PC | SimHub Lighting Supported |
Alpha EVO
Sport, Pro, Ultra
Required
None required
Wheel mounts directly to base via Zeus QR50
SimHub
SimHub Not Supported
Alpha Series
M10, Mini, Alpha, Alpha U
Required
MagLink Pro or MagLink Pro Xtend
MagLink Pro: wired connection from wheel to your PC.MagLink Pro Xtend: CNC aluminium QR adapter that makes the wheel side cable-free. Base side stays wired.
SimHub
SimHub Lighting Supported
Third-party bases
Fanatec, Moza, others
Required
MagLink Pro
Wired connection to your PC
SimHub
SimHub Lighting Supported
Related accessories sold separately. Use the Find Your Setup tool above for personalised guidance.
Full Specifications
Product name
Zeus Formula Steering Wheel
Programmable RGB Buttons
16
Wheel type
Formula Steering Wheel
7-Way Multi-Position Switches
2
Diameter
280mm
12-Position Programmable Rotary Encoders
4
Net Weight
1.63kg (excluding QR, including MagicDash 4)
Thumb Rotary Encoders
4
Wheel material
5mm solid carbon fibre front plate; one-piece CNC-machined aluminium alloy back cover
Total Mappable Inputs
Up to 92
Grip material
Three-layer silicone (steel core, injection-moulded mid-layer, silicone outer)
Hall Paddle Module
Included (standard dual paddle configuration)
Quick release
50mm Zeus Quick Release (pre-installed)
MagicDash 4 display
Compatible
Connection type
CAN FD / USB
Electrical specifications
DC 5V / 2A, 10W max
Operating Temperature
0°C to 40°C
Humidity
20% to 80% RH, non-condensing
Dimensions (with MagicDash 4)
280mm × 183.9mm × 108.2mm
Optional accessories
MagicDash 4, MagLink Pro, MagLink Pro Xtend, AirLink Wireless Hotspot, single paddle module, triple paddle module, push-pull paddle module
WHAT'S IN THE BOX
- Zeus Formula steering wheel
- Zeus QR50 quick release (pre-installed)
- MagicDash 4 (included only with optional addon)
- Accessory pack (tweezers, 2mm hex wrench)
- Envelope pack (button stickers, quick guide, Simagic logo sticker, USB-C cable)
FAQ
-
Yes. The Zeus Formula mounts directly to Alpha EVO bases via the included Zeus QR50 quick release. For Alpha series and third-party wheelbases, you'll need a MagLink Pro or MagLink Pro Xtend to bridge the wheel to your PC. Use the Find Your Setup tool above to find the right option for your base.
-
Yes. Paddle modules swap with a few screws and a single terminal connection. All modules use the same hall-effect sensors for consistent response, so you can switch between dual, triple, push-pull, and single paddle setups without recalibrating force or feel.
-
Maglink Pro is the standard wired connection for Zeus wheels to PC.
MagLink Pro Xtend is a CNC aluminium quick-release adapter for Alpha series wheelbases. It replaces your standard QR with a magnetic data interface, making the wheel side cable-free. Note that the base side still requires a wired connection to your PC. -
AirLink is a wireless hotspot specifically for the MagicDash 4 display when used on an Alpha EVO wheelbase. It streams telemetry to the screen without any cable connection to your PC.
-
Yes. The Zeus Formula has full SimHub compatibility for both dashboard and lighting on Alpha series, third-party, and PC-only setups. On Alpha EVO via AirLink, SimHub dashboard is supported.
